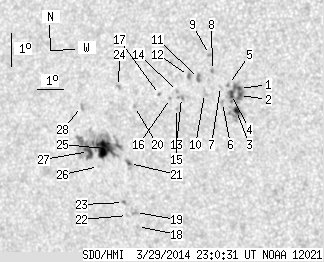

SDO HMI 2014-03-29 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.17 | 156.07 | 21.50 | 97.65 | -13.83 | 73.37 | -37.50 | 104.04 | 0.6111 | -114.3 | -46.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 19.89 | 0.68 | 11.87 | -12.81 | 77.10 | -33.77 | 103.09 | 0.5587 | 1041.0 | 783.3 | |
| 2.45 | -1.00 | 1.46 | -1.00 | -13.02 | 77.07 | -33.80 | 103.46 | 0.5595 | 1034.1 | 999999 | |
| 2.89 | 14.63 | 1.73 | 8.75 | -13.46 | 76.89 | -33.99 | 104.20 | 0.5629 | 932.3 | 606.1 | |
| 2.01 | -1.00 | 1.21 | -1.00 | -12.97 | 76.78 | -34.09 | 103.31 | 0.5635 | 892.1 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -12.67 | 76.71 | -34.16 | 102.75 | 0.5638 | 698.0 | 659.3 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -13.19 | 76.41 | -34.46 | 103.61 | 0.5690 | 488.0 | 381.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -12.71 | 76.41 | -34.46 | 102.76 | 0.5681 | 519.0 | 375.3 | |
| 0.00 | 1.66 | 0.00 | 1.00 | -12.21 | 76.19 | -34.68 | 101.85 | 0.5704 | 456.0 | 484.8 | |
| 0.00 | 1.58 | 0.00 | 0.95 | -11.72 | 76.15 | -34.72 | 100.99 | 0.5703 | 700.0 | 555.3 | |
| 0.00 | 4.20 | 0.00 | 2.55 | -12.88 | 75.78 | -35.09 | 102.93 | 0.5771 | 513.0 | 261.1 | |
| 0.00 | 3.15 | 0.00 | 1.91 | -12.41 | 75.63 | -35.24 | 102.10 | 0.5785 | 783.0 | 692.5 | |
| 0.53 | 2.45 | 0.32 | 1.49 | -12.30 | 75.27 | -35.60 | 101.84 | 0.5833 | 719.2 | 546.2 | |
| 0.00 | 3.15 | 0.00 | 1.93 | -12.94 | 74.90 | -35.97 | 102.87 | 0.5894 | 928.0 | 667.1 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -12.75 | 74.78 | -36.09 | 102.52 | 0.5907 | 720.0 | 555.3 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -13.26 | 74.66 | -36.21 | 103.35 | 0.5932 | 655.0 | 562.8 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -12.94 | 74.48 | -36.39 | 102.79 | 0.5951 | 457.0 | 463.9 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -12.79 | 74.09 | -36.78 | 102.47 | 0.6003 | 418.0 | 426.2 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -16.70 | 72.42 | -38.45 | 108.40 | 0.6299 | -404.0 | -338.1 | |
| 0.00 | 2.80 | 0.00 | 1.78 | -16.27 | 72.45 | -38.42 | 107.74 | 0.6287 | -810.0 | -673.1 | |
| 0.00 | 1.49 | 0.00 | 0.93 | -13.08 | 73.07 | -37.80 | 102.78 | 0.6144 | -840.0 | -671.4 | |
| 0.88 | 4.47 | 0.55 | 2.83 | -14.78 | 72.54 | -38.33 | 105.40 | 0.6243 | -802.7 | -546.6 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -16.34 | 72.11 | -38.76 | 107.76 | 0.6331 | -523.0 | -415.1 | |
| 0.00 | 1.66 | 0.00 | 1.06 | -15.93 | 72.04 | -38.83 | 107.11 | 0.6331 | -677.0 | -625.9 | |
| 0.00 | 2.19 | 0.00 | 1.38 | -12.44 | 72.56 | -38.31 | 101.66 | 0.6204 | 685.0 | 565.4 | |
| 18.31 | 78.66 | 11.71 | 50.48 | -14.26 | 71.65 | -39.22 | 104.40 | 0.6349 | -952.0 | -504.9 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -14.78 | 71.30 | -39.57 | 105.15 | 0.6404 | -542.0 | -427.4 | |
| 5.96 | -25.00 | 3.84 | -25.00 | -14.30 | 71.00 | -39.87 | 104.35 | 0.6435 | -692.5 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.41 | -12.93 | 71.00 | -39.87 | 102.23 | 0.6416 | -691.0 | -547.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
