SDO HMI 2014-03-30 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.33 | 0.00 | 18.27 | -14.59 | 126.86 | 16.54 | 233.54 | 0.3444 | 318.0 | 173.7 | |
|
previous
or next observation for the same group /

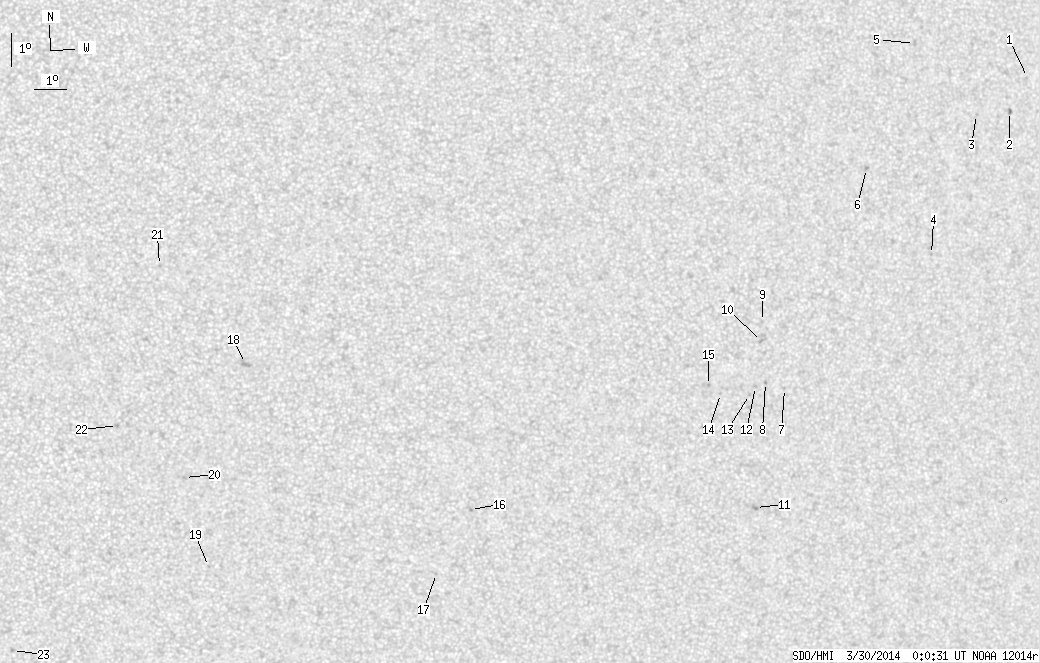

back to the solar disc SDO HMI 2014-03-30 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.35 | -5.75 | 140.77 | 30.45 | 270.02 | 0.5062 | 529.0 | 422.0 | |
| 0.00 | 2.19 | 0.00 | 1.25 | -6.80 | 140.21 | 29.89 | 267.96 | 0.4971 | 801.0 | 655.5 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -6.95 | 139.07 | 28.75 | 267.71 | 0.4799 | 591.0 | 565.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -11.22 | 137.88 | 27.56 | 258.51 | 0.4651 | 716.0 | 572.0 | |
| 0.00 | 2.02 | 0.00 | 1.12 | -4.94 | 136.86 | 26.54 | 272.32 | 0.4474 | 726.0 | 589.2 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -8.76 | 135.46 | 25.14 | 263.58 | 0.4244 | 710.0 | 580.0 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -15.48 | 133.35 | 23.03 | 246.73 | 0.4121 | 728.0 | 492.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.33 | 132.69 | 22.37 | 246.58 | 0.4017 | 815.0 | 659.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -13.50 | 132.40 | 22.08 | 250.82 | 0.3886 | 709.0 | 587.6 | |
| 0.00 | 1.93 | 0.00 | 1.04 | -14.10 | 132.42 | 22.10 | 249.35 | 0.3917 | 766.0 | 619.8 | |
| 0.00 | 2.80 | 0.00 | 1.53 | -19.14 | 132.83 | 22.51 | 238.20 | 0.4274 | 844.0 | 687.0 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -15.46 | 132.37 | 22.05 | 246.00 | 0.3977 | 791.0 | 633.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.72 | 132.19 | 21.87 | 245.26 | 0.3966 | 601.0 | 491.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -15.72 | 131.23 | 20.91 | 244.38 | 0.3826 | 610.0 | 516.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -15.50 | 130.80 | 20.48 | 244.55 | 0.3751 | 851.0 | 731.1 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -19.51 | 123.37 | 13.05 | 223.39 | 0.3112 | 777.0 | 658.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -21.51 | 122.42 | 12.10 | 217.03 | 0.3253 | 588.0 | 416.8 | |
| 0.00 | 5.17 | 0.00 | 2.60 | -15.19 | 115.99 | 5.67 | 212.67 | 0.1775 | -880.0 | -710.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -21.41 | 115.00 | 4.68 | 196.60 | 0.2670 | -718.0 | -476.3 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -18.67 | 114.16 | 3.84 | 196.95 | 0.2186 | -892.0 | -658.2 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -12.25 | 113.28 | 2.96 | 207.40 | 0.1103 | -743.0 | -507.1 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -17.09 | 112.03 | 1.71 | 188.94 | 0.1841 | -833.0 | -550.1 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -24.03 | 108.66 | -1.66 | 174.92 | 0.3010 | -773.0 | -646.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
