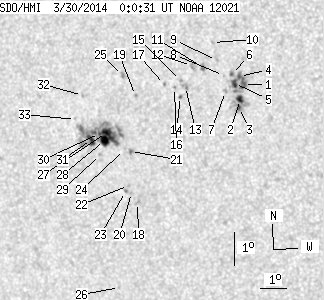

SDO HMI 2014-03-30 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.06 | 151.40 | 18.59 | 93.99 | -13.86 | 73.40 | -36.92 | 104.22 | 0.6033 | -34.8 | -95.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.15 | 23.57 | 1.87 | 13.99 | -13.03 | 77.10 | -33.22 | 103.61 | 0.5513 | 1037.3 | 740.8 | |
| 3.68 | 18.84 | 2.19 | 11.21 | -13.47 | 76.92 | -33.40 | 104.36 | 0.5548 | 944.9 | 517.1 | |
| 1.14 | -2.00 | 0.68 | -2.00 | -13.71 | 76.84 | -33.48 | 104.76 | 0.5563 | 645.1 | 999999 | |
| 0.88 | -1.00 | 0.52 | -1.00 | -12.78 | 76.99 | -33.33 | 103.13 | 0.5524 | 916.1 | 999999 | |
| 2.98 | -1.00 | 1.77 | -1.00 | -12.98 | 76.77 | -33.54 | 103.44 | 0.5558 | 831.5 | 999999 | |
| 0.53 | -1.00 | 0.31 | -1.00 | -12.70 | 76.71 | -33.61 | 102.93 | 0.5562 | 795.8 | 999999 | |
| 0.00 | 1.75 | 0.00 | 1.05 | -13.19 | 76.41 | -33.91 | 103.74 | 0.5614 | 523.0 | 433.2 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -12.71 | 76.41 | -33.91 | 102.88 | 0.5604 | 552.0 | 376.0 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -12.24 | 76.22 | -34.10 | 102.02 | 0.5623 | 697.0 | 538.7 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -11.70 | 76.15 | -34.17 | 101.03 | 0.5625 | 676.0 | 549.2 | |
| 0.00 | 3.33 | 0.00 | 2.00 | -12.42 | 75.67 | -34.65 | 102.23 | 0.5703 | 850.0 | 665.0 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -12.33 | 75.27 | -35.04 | 102.00 | 0.5757 | 744.0 | 523.9 | |
| 0.00 | 2.89 | 0.00 | 1.76 | -12.95 | 74.95 | -35.37 | 103.00 | 0.5812 | 914.0 | 735.7 | |
| 0.53 | 1.31 | 0.32 | 0.80 | -13.23 | 74.71 | -35.61 | 103.44 | 0.5849 | 528.0 | 464.9 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -12.76 | 74.79 | -35.53 | 102.64 | 0.5830 | 778.0 | 633.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -12.95 | 74.53 | -35.79 | 102.92 | 0.5869 | 609.0 | 451.6 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -12.83 | 74.17 | -36.15 | 102.66 | 0.5917 | 419.0 | 353.6 | |
| 0.00 | 2.28 | 0.00 | 1.44 | -16.30 | 72.44 | -37.88 | 107.94 | 0.6218 | -817.0 | -697.1 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -13.09 | 73.01 | -37.30 | 102.87 | 0.6078 | -885.0 | -666.6 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -15.99 | 72.27 | -38.05 | 107.39 | 0.6232 | -703.0 | -609.1 | |
| 0.35 | 2.28 | 0.22 | 1.43 | -14.75 | 72.50 | -37.82 | 105.48 | 0.6176 | -819.8 | -615.6 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -15.77 | 72.20 | -38.12 | 107.03 | 0.6236 | -738.0 | -585.1 | |
| 0.00 | 1.49 | 0.00 | 0.94 | -15.94 | 72.04 | -38.28 | 107.26 | 0.6260 | -767.0 | -654.1 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -14.68 | 72.28 | -38.04 | 105.30 | 0.6203 | -646.0 | -601.8 | |
| 0.00 | 2.45 | 0.00 | 1.53 | -12.45 | 72.62 | -37.70 | 101.77 | 0.6122 | 782.0 | 569.0 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -18.82 | 71.07 | -39.25 | 111.45 | 0.6457 | -460.0 | -402.3 | |
| 4.82 | 75.26 | 3.06 | 47.94 | -14.12 | 71.68 | -38.64 | 104.29 | 0.6272 | -1066.3 | -533.2 | |
| 6.05 | -27.00 | 3.84 | -27.00 | -14.35 | 71.55 | -38.77 | 104.64 | 0.6292 | -937.4 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -14.76 | 71.31 | -39.01 | 105.23 | 0.6332 | -471.0 | -401.6 | |
| 0.96 | -27.00 | 0.61 | -27.00 | -14.13 | 71.40 | -38.92 | 104.25 | 0.6308 | -914.6 | 999999 | |
| 4.99 | -27.00 | 3.20 | -27.00 | -14.28 | 71.05 | -39.27 | 104.44 | 0.6357 | -686.4 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.84 | -12.94 | 70.96 | -39.36 | 102.31 | 0.6349 | -745.0 | -617.3 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -13.64 | 70.54 | -39.78 | 103.34 | 0.6413 | -314.0 | -235.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
