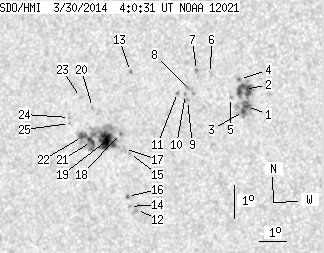

SDO HMI 2014-03-30 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.06 | 141.06 | 24.26 | 85.28 | -13.83 | 73.43 | -34.69 | 104.70 | 0.5730 | -193.5 | -47.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 40.85 | 1.07 | 23.71 | -13.54 | 76.96 | -31.16 | 105.14 | 0.5232 | 942.8 | 684.9 | |
| 9.99 | -1.00 | 5.80 | -1.00 | -13.02 | 76.97 | -31.15 | 104.16 | 0.5219 | 1008.4 | 999999 | |
| 1.49 | -1.00 | 0.87 | -1.00 | -13.68 | 76.83 | -31.29 | 105.37 | 0.5254 | 809.9 | 999999 | |
| 0.44 | 1.23 | 0.25 | 0.71 | -12.71 | 76.83 | -31.29 | 103.53 | 0.5232 | 818.6 | 683.9 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -13.23 | 76.43 | -31.69 | 104.40 | 0.5301 | 505.0 | 410.7 | |
| 0.00 | 1.67 | 0.00 | 0.98 | -12.47 | 75.82 | -32.31 | 102.82 | 0.5373 | 822.0 | 532.5 | |
| 0.00 | 1.93 | 0.00 | 1.14 | -12.35 | 75.32 | -32.80 | 102.49 | 0.5441 | 773.0 | 606.4 | |
| 0.00 | 4.47 | 0.00 | 2.65 | -12.93 | 75.02 | -33.10 | 103.49 | 0.5496 | 753.0 | 684.5 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -13.23 | 74.86 | -33.26 | 103.98 | 0.5523 | 588.0 | 546.2 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -13.04 | 74.82 | -33.31 | 103.63 | 0.5526 | 613.0 | 588.2 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -12.96 | 74.53 | -33.59 | 103.43 | 0.5564 | 577.0 | 293.8 | |
| 0.00 | 3.68 | 0.00 | 2.26 | -16.38 | 72.36 | -35.76 | 108.71 | 0.5942 | -796.0 | -688.5 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -12.22 | 72.90 | -35.23 | 101.79 | 0.5781 | 758.0 | 637.0 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -16.27 | 72.11 | -36.01 | 108.45 | 0.5972 | -666.0 | -522.1 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -14.68 | 72.43 | -35.69 | 105.88 | 0.5889 | -676.0 | -551.5 | |
| 0.44 | 1.67 | 0.27 | 1.03 | -15.96 | 72.10 | -36.02 | 107.94 | 0.5965 | -763.0 | -684.5 | |
| 0.00 | 2.89 | 0.00 | 1.77 | -14.51 | 72.27 | -35.85 | 105.57 | 0.5908 | -215.0 | -301.8 | |
| 0.35 | 1.23 | 0.21 | 0.75 | -14.05 | 72.21 | -35.91 | 104.78 | 0.5907 | -951.8 | -809.8 | |
| 18.67 | 68.38 | 11.53 | 42.34 | -14.23 | 71.64 | -36.48 | 104.94 | 0.5988 | -1057.0 | -530.9 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -13.20 | 71.29 | -36.83 | 103.16 | 0.6017 | -651.0 | -637.8 | |
| 3.51 | -19.00 | 2.18 | -19.00 | -14.22 | 71.06 | -37.06 | 104.79 | 0.6065 | -826.6 | 999999 | |
| 3.33 | -19.00 | 2.08 | -19.00 | -14.04 | 70.74 | -37.38 | 104.44 | 0.6104 | -661.9 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -12.87 | 70.88 | -37.24 | 102.55 | 0.6066 | -890.0 | -682.3 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -13.44 | 70.35 | -37.77 | 103.38 | 0.6146 | -563.0 | -447.4 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -13.62 | 70.32 | -37.80 | 103.67 | 0.6154 | -402.0 | -274.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
