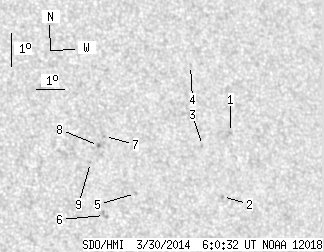

SDO HMI 2014-03-30 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.93 | 0.00 | 7.11 | 3.87 | 139.12 | 32.10 | 287.25 | 0.5572 | 127.2 | 173.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.76 | 5.07 | 142.17 | 35.14 | 287.62 | 0.6038 | -622.0 | -579.6 | |
| 0.00 | 1.14 | 0.00 | 0.70 | 3.09 | 141.77 | 34.74 | 284.63 | 0.5904 | -730.0 | -605.2 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 4.60 | 141.11 | 34.09 | 287.42 | 0.5877 | -758.0 | -552.9 | |
| 0.00 | 1.23 | 0.00 | 0.76 | 7.04 | 140.85 | 33.82 | 291.45 | 0.5958 | -510.0 | -492.4 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 2.99 | 138.64 | 31.62 | 286.01 | 0.5467 | 653.0 | 608.9 | |
| 0.00 | 3.42 | 0.00 | 1.99 | 2.25 | 137.53 | 30.51 | 285.29 | 0.5280 | 683.0 | 565.6 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 4.66 | 137.62 | 30.60 | 289.53 | 0.5404 | 775.0 | 686.4 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 4.37 | 137.40 | 30.37 | 289.17 | 0.5359 | 871.0 | 715.2 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 3.84 | 137.10 | 30.07 | 288.41 | 0.5290 | 783.0 | 636.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
