SDO HMI 2014-03-30 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.10 | 0.00 | 7.89 | -26.25 | 88.87 | -18.16 | 144.44 | 0.4462 | 238.6 | 260.2 | |
|
previous
or next observation for the same group /

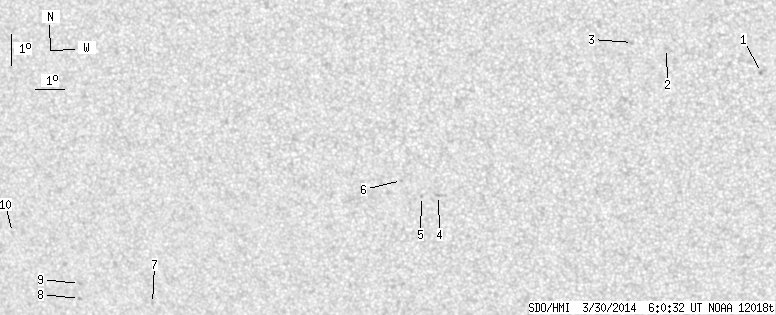

back to the solar disc SDO HMI 2014-03-30 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.28 | 0.00 | 1.18 | -23.39 | 101.81 | -5.22 | 163.88 | 0.3018 | 897.0 | 784.0 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -22.60 | 98.74 | -8.29 | 154.26 | 0.3078 | 800.0 | 522.9 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -22.39 | 97.64 | -9.39 | 151.07 | 0.3131 | 615.0 | 523.0 | |
| 0.00 | 2.10 | 0.00 | 1.16 | -27.04 | 90.57 | -16.46 | 144.42 | 0.4355 | 883.0 | 698.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -27.05 | 89.97 | -17.06 | 143.52 | 0.4412 | 824.0 | 681.2 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -26.52 | 89.35 | -17.68 | 141.77 | 0.4409 | 829.0 | 657.0 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -30.08 | 79.34 | -27.69 | 135.50 | 0.5758 | -605.0 | -409.6 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -29.77 | 76.55 | -30.48 | 132.72 | 0.6015 | -602.0 | -508.3 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -29.28 | 76.71 | -30.31 | 132.17 | 0.5962 | -701.0 | -523.4 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -27.50 | 74.63 | -32.40 | 128.05 | 0.6058 | -554.0 | -471.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
