SDO HMI 2014-03-30 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.34 | 150.05 | 21.20 | 89.74 | -13.84 | 73.20 | -33.82 | 104.94 | 0.5612 | -306.3 | -68.5 | |
|
previous
or next observation for the same group /

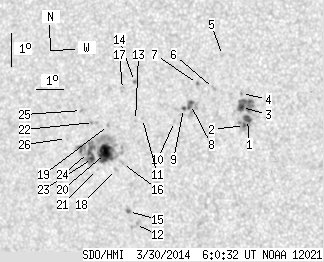

back to the solar disc SDO HMI 2014-03-30 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.07 | 12.98 | 1.76 | 7.46 | -13.50 | 76.95 | -30.08 | 105.43 | 0.5076 | 968.8 | 629.9 | |
| 0.96 | -1.00 | 0.55 | -1.00 | -13.68 | 76.81 | -30.21 | 105.73 | 0.5100 | 825.1 | 999999 | |
| 3.42 | 19.55 | 1.97 | 11.22 | -13.13 | 76.78 | -30.24 | 104.66 | 0.5090 | 864.4 | 873.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -12.71 | 76.84 | -30.19 | 103.85 | 0.5072 | 864.0 | 735.5 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -11.53 | 76.32 | -30.71 | 101.42 | 0.5125 | 687.0 | 596.1 | |
| 0.00 | 2.02 | 0.00 | 1.17 | -12.50 | 75.87 | -31.16 | 103.18 | 0.5209 | 808.0 | 633.1 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -12.32 | 75.32 | -31.71 | 102.70 | 0.5285 | 761.0 | 686.4 | |
| 2.46 | 13.94 | 1.44 | 8.16 | -12.93 | 74.98 | -32.05 | 103.76 | 0.5346 | 794.1 | 592.3 | |
| 0.88 | -8.00 | 0.51 | -8.00 | -13.04 | 74.71 | -32.32 | 103.89 | 0.5386 | 634.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -13.40 | 74.32 | -32.70 | 104.46 | 0.5449 | 395.0 | 311.6 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -13.24 | 73.17 | -33.86 | 103.88 | 0.5608 | -703.0 | -649.5 | |
| 0.00 | 4.38 | 0.00 | 2.66 | -16.41 | 72.33 | -34.70 | 109.13 | 0.5802 | -627.0 | -617.3 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -13.28 | 72.90 | -34.13 | 103.89 | 0.5646 | -476.0 | -391.6 | |
| 0.35 | 1.40 | 0.21 | 0.84 | -12.11 | 73.04 | -33.98 | 101.85 | 0.5605 | 777.2 | 621.2 | |
| 0.79 | 1.93 | 0.48 | 1.17 | -16.00 | 72.14 | -34.88 | 108.37 | 0.5815 | -855.9 | -692.8 | |
| 0.00 | 2.37 | 0.00 | 1.43 | -14.54 | 72.20 | -34.83 | 105.90 | 0.5770 | -761.0 | -589.0 | |
| 0.00 | 2.37 | 0.00 | 1.42 | -12.32 | 72.57 | -34.46 | 102.13 | 0.5676 | 387.0 | 476.9 | |
| 0.00 | 2.02 | 0.00 | 1.23 | -14.71 | 71.94 | -35.09 | 106.11 | 0.5809 | -686.0 | -528.9 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -13.37 | 71.87 | -35.15 | 103.80 | 0.5790 | -787.0 | -721.1 | |
| 19.73 | 73.92 | 12.02 | 45.10 | -14.20 | 71.61 | -35.41 | 105.17 | 0.5842 | -1055.1 | -531.9 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -14.66 | 71.22 | -35.80 | 105.85 | 0.5905 | -531.0 | -404.6 | |
| 0.00 | 2.19 | 0.00 | 1.34 | -13.24 | 71.33 | -35.70 | 103.47 | 0.5863 | -602.0 | -697.2 | |
| 2.54 | -20.00 | 1.56 | -20.00 | -14.32 | 71.10 | -35.93 | 105.24 | 0.5915 | -725.3 | 999999 | |
| 1.14 | -20.00 | 0.70 | -20.00 | -14.13 | 70.98 | -36.05 | 104.89 | 0.5927 | -833.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -12.85 | 70.94 | -36.09 | 102.73 | 0.5910 | -788.0 | -602.0 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -13.65 | 70.22 | -36.80 | 103.93 | 0.6020 | -552.0 | -392.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
