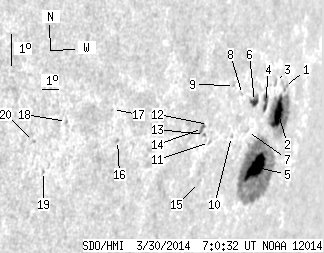

SDO HMI 2014-03-30 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.06 | 267.44 | 70.27 | 338.35 | -13.09 | 174.22 | 67.74 | 258.56 | 0.9211 | 514.3 | 145.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.17 | 0.00 | 6.83 | -11.16 | 175.26 | 68.78 | 260.61 | 0.9286 | 312.0 | 160.1 | |
| 18.85 | 63.75 | 24.75 | 84.22 | -11.99 | 175.19 | 68.71 | 259.72 | 0.9279 | 551.8 | -27.7 | |
| 0.00 | 2.72 | 0.00 | 3.48 | -11.12 | 174.49 | 68.01 | 260.69 | 0.9236 | 303.0 | 303.8 | |
| 4.91 | 7.89 | 6.15 | 9.88 | -11.78 | 174.00 | 67.52 | 260.00 | 0.9202 | 527.9 | 398.9 | |
| 26.74 | 160.99 | 33.84 | 204.34 | -13.74 | 174.35 | 67.87 | 257.86 | 0.9221 | 727.0 | 214.8 | |
| 4.56 | 7.98 | 5.53 | 9.67 | -11.84 | 173.15 | 66.67 | 259.97 | 0.9144 | 676.2 | 490.7 | |
| 0.00 | 1.40 | 0.00 | 1.69 | -12.77 | 173.07 | 66.60 | 258.95 | 0.9137 | 513.0 | 398.4 | |
| 0.00 | 0.96 | 0.00 | 1.13 | -11.73 | 172.18 | 65.70 | 260.13 | 0.9076 | 441.0 | 419.5 | |
| 0.00 | 0.70 | 0.00 | 0.80 | -11.52 | 171.50 | 65.02 | 260.38 | 0.9026 | 581.0 | 493.5 | |
| 0.00 | 1.14 | 0.00 | 1.32 | -13.03 | 171.99 | 65.51 | 258.69 | 0.9059 | -177.0 | -93.0 | |
| 0.00 | 1.49 | 0.00 | 1.64 | -13.37 | 170.55 | 64.07 | 258.35 | 0.8952 | -217.0 | -69.1 | |
| 0.00 | 0.53 | 0.00 | 0.57 | -12.85 | 170.23 | 63.75 | 258.94 | 0.8929 | 184.0 | 203.2 | |
| 0.00 | 1.23 | 0.00 | 1.33 | -13.17 | 170.10 | 63.62 | 258.58 | 0.8918 | -196.0 | -214.6 | |
| 0.00 | 4.03 | 0.00 | 4.35 | -13.00 | 169.88 | 63.41 | 258.76 | 0.8902 | -550.0 | -426.8 | |
| 0.00 | 2.72 | 0.00 | 2.98 | -14.60 | 170.47 | 63.99 | 256.96 | 0.8946 | 223.0 | 207.8 | |
| 0.00 | 0.79 | 0.00 | 0.73 | -13.87 | 164.83 | 58.35 | 257.76 | 0.8478 | -350.0 | -304.1 | |
| 0.00 | 0.61 | 0.00 | 0.56 | -12.98 | 164.20 | 57.72 | 258.81 | 0.8419 | -473.0 | -416.6 | |
| 0.00 | 1.32 | 0.00 | 1.13 | -13.57 | 161.82 | 55.34 | 258.05 | 0.8195 | -414.0 | -360.1 | |
| 0.00 | 1.14 | 0.00 | 0.97 | -15.17 | 161.16 | 54.68 | 256.07 | 0.8136 | -522.0 | -388.9 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -14.32 | 160.32 | 53.84 | 257.07 | 0.8048 | -539.0 | -490.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
