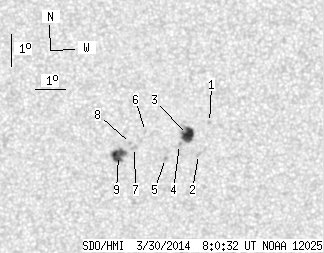

SDO HMI 2014-03-30 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.39 | 40.42 | 11.29 | 21.32 | -24.28 | 116.02 | 10.09 | 207.62 | 0.3460 | 44.8 | -8.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.79 | -23.54 | 117.72 | 11.78 | 212.57 | 0.3493 | 848.0 | 613.8 | |
| 0.00 | 2.19 | 0.00 | 1.16 | -24.56 | 117.44 | 11.51 | 210.36 | 0.3606 | 694.0 | 590.2 | |
| 11.22 | 14.91 | 5.93 | 7.87 | -23.93 | 117.02 | 11.08 | 210.41 | 0.3486 | 1060.1 | 752.0 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -24.25 | 116.78 | 10.84 | 209.39 | 0.3511 | 749.0 | 589.5 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -24.70 | 116.34 | 10.41 | 207.77 | 0.3540 | 742.0 | 602.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -23.87 | 115.61 | 9.68 | 207.31 | 0.3366 | -902.0 | -668.7 | |
| 0.00 | 2.89 | 0.00 | 1.52 | -24.37 | 115.28 | 9.35 | 205.80 | 0.3415 | -879.0 | -613.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -24.25 | 115.14 | 9.21 | 205.64 | 0.3387 | -1022.0 | -787.4 | |
| 10.17 | 14.56 | 5.36 | 7.67 | -24.63 | 114.77 | 8.84 | 204.23 | 0.3417 | -1062.9 | -757.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
