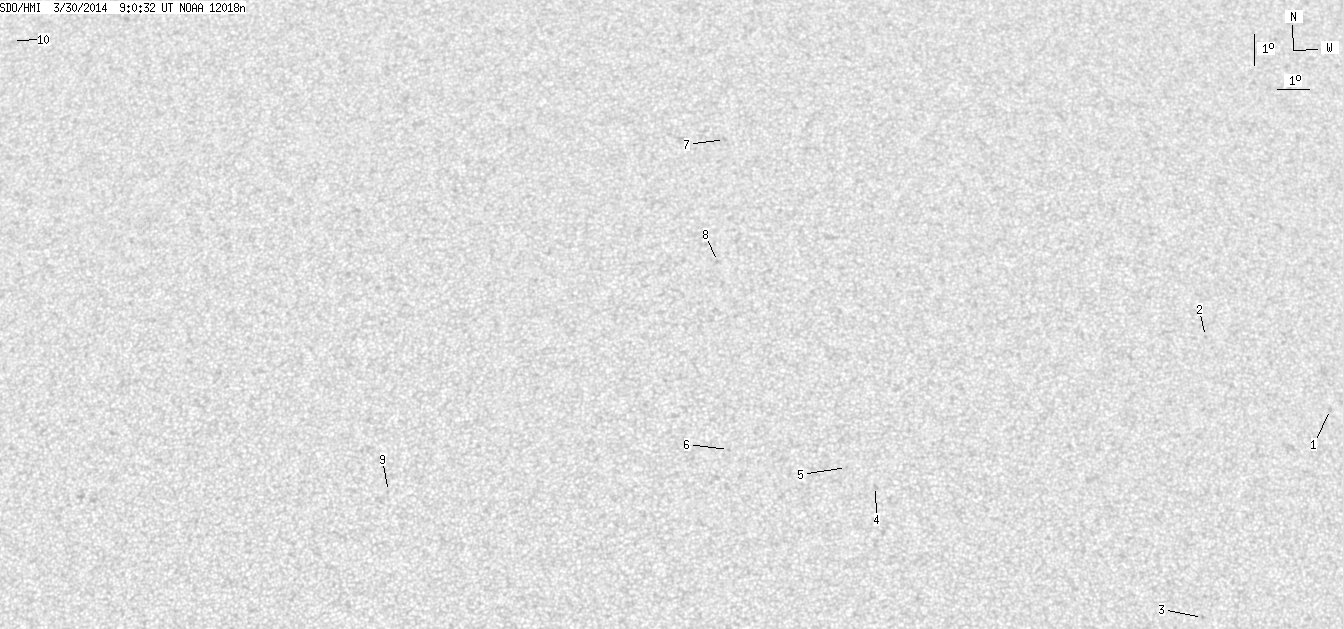

SDO HMI 2014-03-30 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.15 | 0.00 | 7.16 | 13.09 | 113.42 | 8.04 | 338.13 | 0.4026 | 401.9 | 286.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.10 | 12.00 | 128.57 | 23.18 | 308.86 | 0.4966 | -778.0 | -633.6 | |
| 0.00 | 0.96 | 0.00 | 0.54 | 14.15 | 124.64 | 19.26 | 317.46 | 0.4749 | -781.0 | -662.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 5.35 | 124.01 | 18.62 | 302.38 | 0.3781 | 746.0 | 634.6 | |
| 0.00 | 2.37 | 0.00 | 1.23 | 9.12 | 113.96 | 8.57 | 331.43 | 0.3091 | 673.0 | 560.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 9.70 | 113.08 | 7.70 | 334.77 | 0.3111 | 635.0 | 506.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 10.23 | 109.49 | 4.10 | 346.35 | 0.2994 | 789.0 | 620.5 | |
| 0.00 | 1.84 | 0.00 | 1.03 | 20.25 | 109.57 | 4.19 | 351.38 | 0.4588 | 705.0 | 569.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 16.21 | 109.25 | 3.87 | 350.53 | 0.3950 | 868.0 | 638.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 8.95 | 99.15 | -6.24 | 21.83 | 0.2899 | 667.0 | 427.9 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 24.05 | 85.96 | -19.42 | 31.06 | 0.5908 | 495.0 | 501.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
