SDO HMI 2014-03-30 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.96 | 247.49 | 65.44 | 337.35 | -13.12 | 174.31 | 69.47 | 258.47 | 0.9322 | 512.5 | 118.6 | |
|
previous
or next observation for the same group /

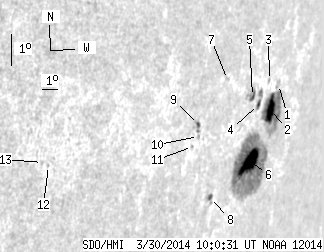

back to the solar disc SDO HMI 2014-03-30 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.68 | 0.00 | 5.28 | -11.19 | 175.51 | 70.67 | 260.47 | 0.9401 | 51.0 | 56.0 | |
| 16.48 | 56.73 | 23.32 | 80.98 | -11.99 | 175.23 | 70.39 | 259.64 | 0.9382 | 491.2 | -116.8 | |
| 0.00 | 1.40 | 0.00 | 1.94 | -11.16 | 174.67 | 69.83 | 260.55 | 0.9351 | 350.0 | 302.6 | |
| 2.02 | 7.89 | 2.72 | 10.64 | -11.95 | 174.13 | 69.29 | 259.73 | 0.9316 | 463.6 | 445.2 | |
| 2.45 | 7.45 | 3.23 | 9.75 | -11.78 | 173.51 | 68.67 | 259.95 | 0.9277 | 608.6 | 532.4 | |
| 23.94 | 154.04 | 32.53 | 210.25 | -13.68 | 174.38 | 69.54 | 257.87 | 0.9327 | 694.1 | 175.8 | |
| 0.00 | 1.67 | 0.00 | 2.01 | -11.48 | 171.33 | 66.50 | 260.36 | 0.9133 | 252.0 | 288.7 | |
| 1.67 | 4.65 | 2.04 | 5.72 | -15.04 | 171.96 | 67.12 | 256.45 | 0.9169 | 582.1 | 486.0 | |
| 1.40 | 5.52 | 1.60 | 6.29 | -13.01 | 169.88 | 65.04 | 258.72 | 0.9026 | -353.3 | -266.6 | |
| 0.00 | 1.14 | 0.00 | 1.31 | -13.36 | 170.06 | 65.22 | 258.33 | 0.9038 | -283.0 | -196.2 | |
| 0.00 | 0.96 | 0.00 | 1.10 | -13.70 | 169.79 | 64.95 | 257.96 | 0.9018 | -343.0 | -289.5 | |
| 0.00 | 0.96 | 0.00 | 0.85 | -15.12 | 161.26 | 56.42 | 256.21 | 0.8303 | -465.0 | -357.7 | |
| 0.00 | 1.40 | 0.00 | 1.23 | -15.06 | 160.90 | 56.06 | 256.26 | 0.8269 | -318.0 | -321.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
