SDO HMI 2014-03-30 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.07 | 0.00 | 7.96 | 3.97 | 138.76 | 33.92 | 286.31 | 0.5830 | 253.5 | 121.9 | |
|
previous
or next observation for the same group /

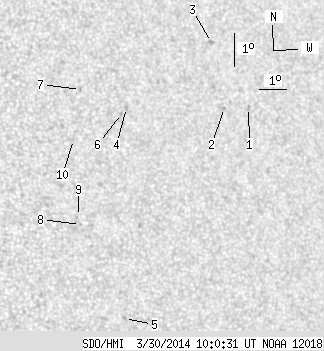

back to the solar disc SDO HMI 2014-03-30 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.29 | 5.00 | 142.21 | 37.37 | 286.39 | 0.6326 | -534.0 | -513.5 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 4.94 | 141.30 | 36.47 | 286.72 | 0.6205 | -761.0 | -677.7 | |
| 0.00 | 2.37 | 0.00 | 1.50 | 6.90 | 140.97 | 36.13 | 289.90 | 0.6248 | -651.0 | -549.3 | |
| 0.00 | 2.19 | 0.00 | 1.32 | 4.70 | 137.70 | 32.86 | 288.21 | 0.5715 | 695.0 | 542.0 | |
| 0.00 | 1.84 | 0.00 | 1.09 | -1.70 | 137.51 | 32.67 | 277.14 | 0.5459 | 670.0 | 541.4 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 4.50 | 137.51 | 32.67 | 287.99 | 0.5680 | 721.0 | 586.8 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 5.15 | 136.09 | 31.25 | 289.93 | 0.5518 | 749.0 | 601.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 1.04 | 135.95 | 31.11 | 282.74 | 0.5317 | 649.0 | 560.9 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 1.28 | 135.88 | 31.04 | 283.21 | 0.5317 | 422.0 | 513.0 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 3.61 | 135.77 | 30.93 | 287.45 | 0.5399 | 575.0 | 487.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
