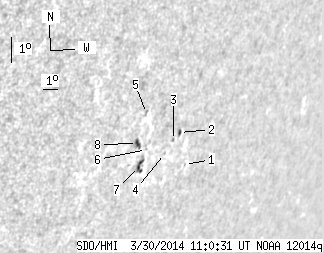

SDO HMI 2014-03-30 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.52 | 17.35 | 5.91 | 18.68 | -25.35 | 167.02 | 62.73 | 244.82 | 0.8894 | -55.1 | 12.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.83 | -25.50 | 169.88 | 65.59 | 244.92 | 0.9092 | -386.0 | -289.2 | |
| 0.79 | 1.84 | 0.89 | 2.07 | -24.59 | 168.57 | 64.28 | 245.82 | 0.8998 | -302.8 | -217.1 | |
| 0.00 | 0.79 | 0.00 | 0.88 | -24.87 | 168.38 | 64.09 | 245.49 | 0.8987 | -311.0 | -244.1 | |
| 0.00 | 0.70 | 0.00 | 0.78 | -25.32 | 168.13 | 63.84 | 244.97 | 0.8973 | -224.0 | -268.8 | |
| 0.00 | 1.31 | 0.00 | 1.36 | -24.24 | 165.85 | 61.56 | 245.95 | 0.8800 | 149.0 | 157.5 | |
| 0.00 | 0.70 | 0.00 | 0.75 | -25.32 | 166.79 | 62.50 | 244.84 | 0.8878 | -174.0 | -159.8 | |
| 2.89 | 7.28 | 3.10 | 7.79 | -25.88 | 166.80 | 62.51 | 244.21 | 0.8883 | 477.0 | 370.3 | |
| 1.84 | 4.03 | 1.92 | 4.22 | -25.20 | 166.04 | 61.75 | 244.89 | 0.8822 | -450.1 | -330.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
