SDO HMI 2014-03-30 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 32.06 | 0.00 | 17.38 | -15.23 | 123.44 | 19.15 | 239.48 | 0.3748 | 92.2 | 124.3 | |
|
previous
or next observation for the same group /

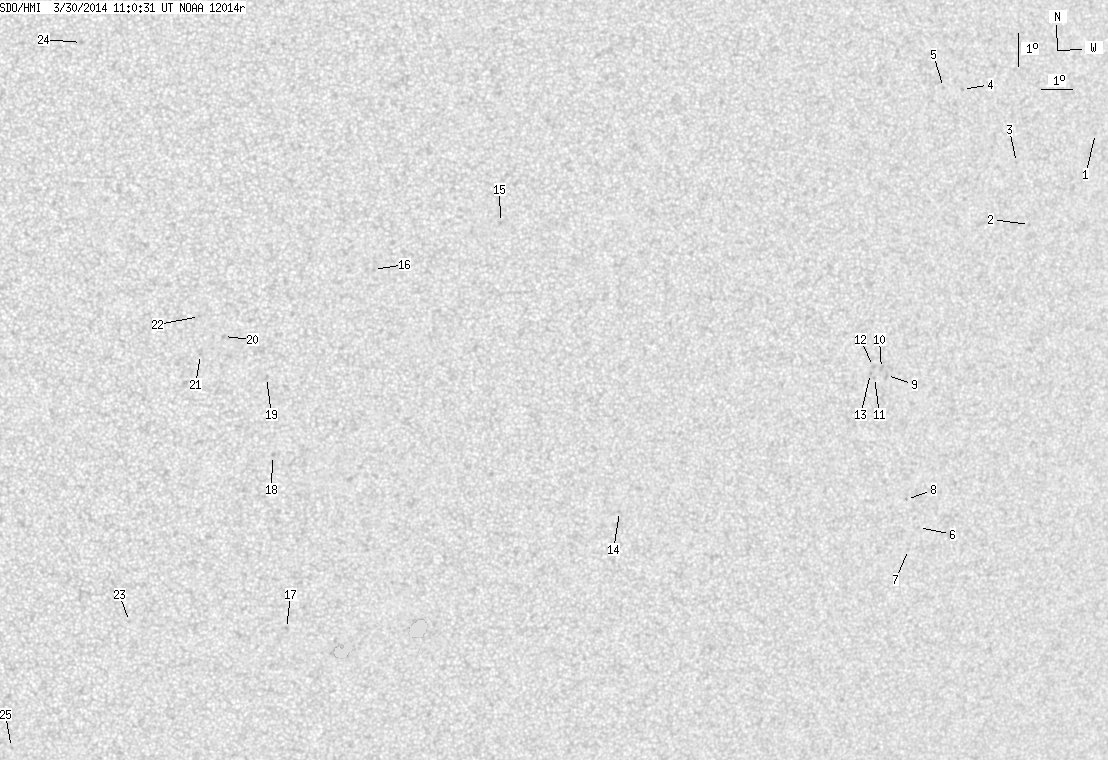

back to the solar disc SDO HMI 2014-03-30 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.58 | -7.85 | 138.52 | 34.23 | 265.77 | 0.5609 | 639.0 | 483.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.71 | 136.43 | 32.13 | 260.37 | 0.5322 | 558.0 | 417.7 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -8.89 | 135.77 | 31.48 | 263.77 | 0.5210 | 664.0 | 480.3 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -6.81 | 133.70 | 29.41 | 267.87 | 0.4900 | 718.0 | 582.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -6.79 | 133.05 | 28.76 | 267.96 | 0.4800 | 672.0 | 538.7 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -20.09 | 133.93 | 29.64 | 241.99 | 0.5281 | 510.0 | 389.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -20.78 | 133.71 | 29.41 | 240.62 | 0.5290 | 608.0 | 481.0 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -19.25 | 133.32 | 29.03 | 243.11 | 0.5158 | 664.0 | 621.0 | |
| 0.00 | 2.98 | 0.00 | 1.68 | -15.53 | 131.98 | 27.69 | 249.49 | 0.4800 | 744.0 | 619.4 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -15.32 | 131.78 | 27.49 | 249.79 | 0.4763 | 796.0 | 639.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -15.61 | 131.57 | 27.28 | 249.10 | 0.4745 | 760.0 | 618.0 | |
| 0.00 | 1.75 | 0.00 | 0.98 | -15.28 | 131.49 | 27.20 | 249.73 | 0.4720 | 748.0 | 580.5 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -15.50 | 131.42 | 27.12 | 249.25 | 0.4718 | 773.0 | 684.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -20.06 | 123.43 | 19.14 | 232.26 | 0.3912 | 754.0 | 583.2 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -11.42 | 118.82 | 14.53 | 250.46 | 0.2622 | 829.0 | 534.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.93 | 114.91 | 10.62 | 238.11 | 0.2125 | -822.0 | -656.0 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -23.97 | 112.72 | 8.43 | 204.11 | 0.3293 | -915.0 | -629.5 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -18.62 | 111.97 | 7.68 | 211.25 | 0.2454 | -776.0 | -579.1 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -16.25 | 111.69 | 7.40 | 216.33 | 0.2096 | -727.0 | -623.0 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -15.02 | 110.30 | 6.01 | 214.61 | 0.1790 | -886.0 | -604.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -15.57 | 109.60 | 5.31 | 209.74 | 0.1805 | -787.0 | -660.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -14.42 | 109.54 | 5.25 | 213.07 | 0.1632 | -777.0 | -656.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -23.80 | 107.54 | 3.25 | 189.96 | 0.3014 | -776.0 | -552.7 | |
| 0.00 | 1.75 | 0.00 | 0.87 | -6.22 | 105.86 | 1.57 | 284.49 | 0.0282 | -847.0 | -609.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -27.80 | 103.65 | -0.64 | 178.44 | 0.3630 | -820.0 | -567.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
