SDO HMI 2014-03-30 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.55 | 0.00 | 5.98 | 4.57 | 139.19 | 36.00 | 286.37 | 0.6127 | 105.6 | 66.0 | |
|
previous
or next observation for the same group /

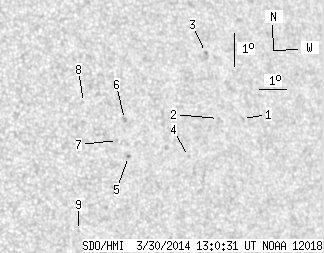

back to the solar disc SDO HMI 2014-03-30 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.97 | 5.00 | 142.21 | 39.02 | 285.65 | 0.6536 | -544.0 | -493.3 | |
| 0.00 | 0.79 | 0.00 | 0.51 | 4.93 | 141.28 | 38.09 | 285.96 | 0.6415 | -714.0 | -614.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | 6.93 | 140.95 | 37.76 | 289.08 | 0.6455 | -666.0 | -612.8 | |
| 0.00 | 0.96 | 0.00 | 0.61 | 3.69 | 140.07 | 36.88 | 284.59 | 0.6211 | -504.0 | -417.2 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 3.53 | 137.84 | 34.64 | 285.36 | 0.5906 | 789.0 | 646.3 | |
| 0.00 | 2.19 | 0.00 | 1.35 | 4.65 | 137.75 | 34.56 | 287.22 | 0.5941 | 697.0 | 582.1 | |
| 0.00 | 0.79 | 0.00 | 0.48 | 4.00 | 137.46 | 34.27 | 286.30 | 0.5874 | 683.0 | 545.8 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 5.08 | 136.29 | 33.10 | 288.70 | 0.5764 | 574.0 | 524.1 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 1.17 | 135.96 | 32.77 | 282.22 | 0.5559 | 635.0 | 500.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
