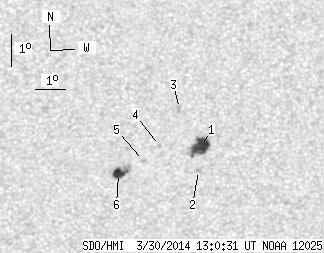

SDO HMI 2014-03-30 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.73 | 50.05 | 14.24 | 26.64 | -24.11 | 116.18 | 12.99 | 214.04 | 0.3683 | 233.6 | -216.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.93 | 26.56 | 10.10 | 14.17 | -23.85 | 117.15 | 13.96 | 216.39 | 0.3735 | 1005.0 | 464.1 | |
| 0.00 | 2.19 | 0.00 | 1.17 | -24.61 | 117.17 | 13.98 | 215.15 | 0.3831 | 819.0 | 570.1 | |
| 0.00 | 3.07 | 0.00 | 1.62 | -22.68 | 116.33 | 13.14 | 216.88 | 0.3509 | -733.0 | -567.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -23.85 | 115.78 | 12.58 | 213.69 | 0.3607 | -883.0 | -703.5 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -24.34 | 115.29 | 12.09 | 211.90 | 0.3628 | -819.0 | -718.3 | |
| 7.80 | 15.69 | 4.14 | 8.33 | -24.76 | 114.48 | 11.29 | 209.56 | 0.3619 | -1032.5 | -801.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
