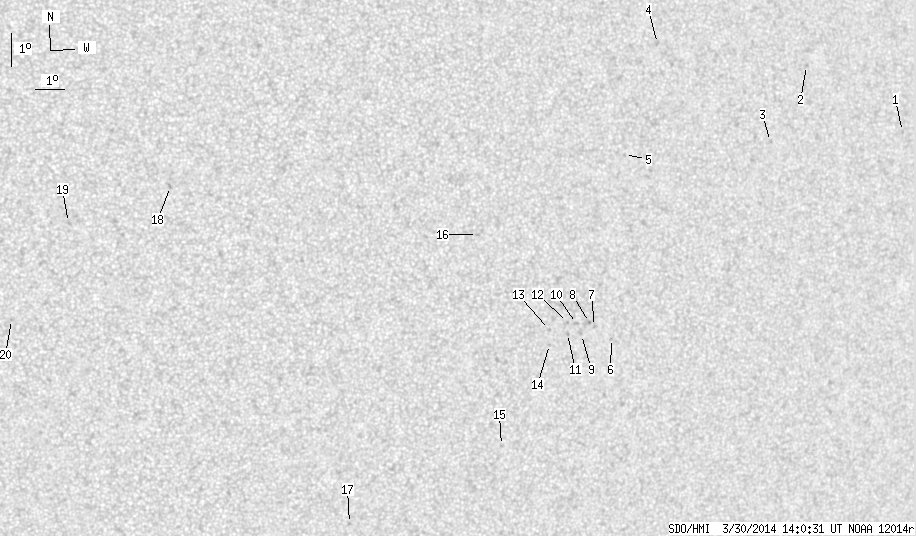

SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.58 | 0.00 | 15.07 | -13.57 | 130.27 | 27.62 | 251.91 | 0.4750 | 613.7 | 495.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.57 | -8.83 | 143.12 | 40.48 | 264.14 | 0.6471 | 396.0 | 325.5 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -7.12 | 139.21 | 36.57 | 266.97 | 0.5943 | 630.0 | 516.6 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -9.48 | 138.11 | 35.47 | 262.93 | 0.5789 | 608.0 | 480.5 | |
| 0.00 | 1.75 | 0.00 | 1.01 | -6.80 | 133.77 | 31.12 | 267.80 | 0.5156 | 605.0 | 513.7 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -10.19 | 132.90 | 30.25 | 261.10 | 0.5039 | 631.0 | 530.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -15.74 | 133.18 | 30.53 | 250.43 | 0.5210 | 731.0 | 608.5 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -15.41 | 132.51 | 29.87 | 250.76 | 0.5105 | 596.0 | 513.2 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -15.30 | 132.32 | 29.67 | 250.89 | 0.5074 | 840.0 | 695.7 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -15.67 | 132.09 | 29.44 | 250.06 | 0.5055 | 616.0 | 532.6 | |
| 0.00 | 2.02 | 0.00 | 1.15 | -15.35 | 131.86 | 29.22 | 250.58 | 0.5011 | 749.0 | 614.0 | |
| 0.00 | 1.58 | 0.00 | 0.90 | -15.67 | 131.59 | 28.94 | 249.83 | 0.4984 | 709.0 | 593.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -15.34 | 131.54 | 28.89 | 250.45 | 0.4965 | 679.0 | 610.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -15.58 | 130.94 | 28.29 | 249.68 | 0.4888 | 800.0 | 647.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -16.04 | 131.01 | 28.36 | 248.82 | 0.4916 | 658.0 | 633.5 | |
| 0.00 | 1.75 | 0.00 | 1.00 | -19.19 | 129.82 | 27.18 | 241.97 | 0.4907 | 659.0 | 485.8 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -12.85 | 128.09 | 25.45 | 254.09 | 0.4374 | 698.0 | 462.3 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -21.83 | 124.92 | 22.27 | 232.47 | 0.4456 | 728.0 | 524.1 | |
| 0.00 | 1.84 | 0.00 | 0.95 | -11.79 | 117.95 | 15.31 | 250.00 | 0.2763 | 816.0 | 684.2 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -12.95 | 114.80 | 12.15 | 241.20 | 0.2352 | -704.0 | -518.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -15.92 | 113.15 | 10.50 | 227.01 | 0.2408 | 828.0 | 657.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
