SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.97 | 0.00 | 8.20 | 3.76 | 139.60 | 36.95 | 284.62 | 0.6222 | 128.1 | 91.8 | |
|
previous
or next observation for the same group /

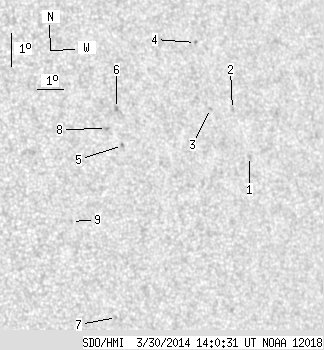

back to the solar disc SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 1.21 | 3.56 | 142.78 | 40.13 | 283.09 | 0.6628 | -543.0 | -430.6 | |
| 0.00 | 1.67 | 0.00 | 1.10 | 4.94 | 142.20 | 39.56 | 285.35 | 0.6603 | -502.0 | -421.8 | |
| 0.00 | 1.40 | 0.00 | 0.91 | 4.91 | 141.34 | 38.70 | 285.66 | 0.6493 | -757.0 | -602.6 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 6.90 | 140.93 | 38.29 | 288.78 | 0.6521 | -600.0 | -522.5 | |
| 0.00 | 1.31 | 0.00 | 0.81 | 3.55 | 137.95 | 35.30 | 285.07 | 0.5996 | 840.0 | 662.3 | |
| 0.00 | 1.93 | 0.00 | 1.19 | 4.66 | 137.79 | 35.14 | 286.93 | 0.6019 | 744.0 | 638.8 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -1.67 | 137.66 | 35.01 | 276.51 | 0.5794 | 602.0 | 502.4 | |
| 0.00 | 1.58 | 0.00 | 0.97 | 4.03 | 137.38 | 34.74 | 286.11 | 0.5939 | 762.0 | 664.9 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 1.12 | 136.02 | 33.38 | 281.87 | 0.5642 | 607.0 | 560.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
