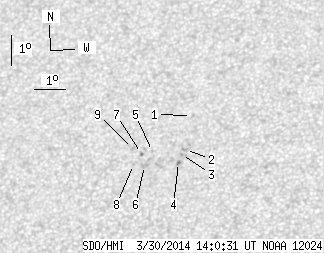

SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.33 | 0.00 | 7.42 | 17.65 | 90.31 | -12.33 | 26.47 | 0.4584 | -708.6 | -628.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.29 | 18.95 | 91.30 | -11.34 | 23.42 | 0.4700 | -487.0 | -519.8 | |
| 0.00 | 2.28 | 0.00 | 1.27 | 17.83 | 91.18 | -11.46 | 24.67 | 0.4550 | -746.0 | -620.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 17.67 | 91.07 | -11.58 | 25.05 | 0.4535 | -928.0 | -801.1 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 17.41 | 90.99 | -11.66 | 25.46 | 0.4504 | -944.0 | -890.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 17.80 | 90.13 | -12.52 | 26.68 | 0.4616 | -484.0 | -421.3 | |
| 0.00 | 3.68 | 0.00 | 2.05 | 17.34 | 89.90 | -12.75 | 27.57 | 0.4569 | -691.0 | -662.5 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 17.74 | 89.77 | -12.87 | 27.38 | 0.4633 | -622.0 | -467.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 17.39 | 89.54 | -13.10 | 28.17 | 0.4601 | -653.0 | -490.9 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 17.91 | 89.47 | -13.17 | 27.74 | 0.4678 | -822.0 | -585.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
