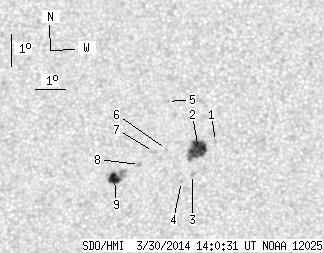

SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.21 | 54.51 | 13.99 | 29.10 | -24.13 | 116.21 | 13.56 | 215.11 | 0.3738 | 248.1 | -121.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | -23.54 | 117.75 | 15.11 | 219.04 | 0.3810 | 795.0 | 561.6 | |
| 18.67 | 27.34 | 9.98 | 14.62 | -23.80 | 117.21 | 14.56 | 217.59 | 0.3788 | 1030.6 | 598.1 | |
| 0.00 | 2.28 | 0.00 | 1.22 | -24.59 | 117.10 | 14.45 | 216.03 | 0.3874 | 756.0 | 615.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -24.82 | 116.75 | 14.10 | 215.02 | 0.3870 | 592.0 | 516.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -22.33 | 116.01 | 13.37 | 218.00 | 0.3489 | -762.0 | -605.4 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -23.83 | 116.13 | 13.49 | 215.52 | 0.3688 | -843.0 | -696.2 | |
| 0.00 | 2.72 | 0.00 | 1.45 | -23.90 | 115.70 | 13.06 | 214.56 | 0.3657 | -575.0 | -571.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -24.32 | 115.27 | 12.63 | 213.01 | 0.3673 | -932.0 | -771.1 | |
| 7.54 | 16.74 | 4.01 | 8.91 | -24.78 | 114.48 | 11.83 | 210.67 | 0.3666 | -1024.6 | -777.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
