SDO HMI 2014-03-30 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.47 | 56.89 | 14.17 | 30.42 | -24.13 | 116.33 | 14.23 | 216.38 | 0.3801 | 296.8 | 29.8 | |
|
previous
or next observation for the same group /

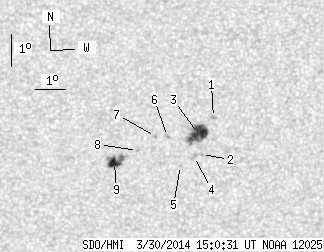

back to the solar disc SDO HMI 2014-03-30 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.31 | -23.27 | 117.64 | 15.55 | 220.29 | 0.3825 | 916.0 | 731.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -24.44 | 117.38 | 15.28 | 217.76 | 0.3936 | 736.0 | 580.7 | |
| 18.93 | 30.06 | 10.15 | 16.11 | -23.79 | 117.20 | 15.10 | 218.58 | 0.3840 | 1004.2 | 562.3 | |
| 0.00 | 2.37 | 0.00 | 1.27 | -24.51 | 117.15 | 15.05 | 217.24 | 0.3922 | 800.0 | 642.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -24.81 | 116.71 | 14.61 | 215.97 | 0.3916 | 484.0 | 455.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -23.91 | 116.16 | 14.07 | 216.49 | 0.3753 | -874.0 | -721.0 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -23.92 | 115.76 | 13.66 | 215.71 | 0.3716 | -916.0 | -735.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -24.37 | 115.20 | 13.11 | 213.87 | 0.3722 | -881.0 | -811.9 | |
| 7.54 | 16.65 | 4.02 | 8.87 | -24.77 | 114.46 | 12.37 | 211.78 | 0.3709 | -1038.4 | -801.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
