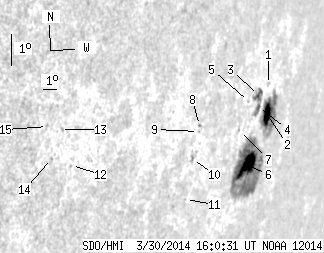

SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.02 | 201.70 | 61.62 | 324.95 | -13.05 | 174.53 | 72.98 | 258.37 | 0.9520 | 401.7 | 102.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 3.31 | -11.14 | 174.94 | 73.39 | 260.37 | 0.9550 | 238.0 | 204.1 | |
| 10.51 | 49.33 | 17.71 | 84.04 | -12.00 | 175.44 | 73.89 | 259.43 | 0.9572 | 319.2 | -130.5 | |
| 4.73 | 16.03 | 7.47 | 25.36 | -11.56 | 174.16 | 72.61 | 259.97 | 0.9508 | 522.5 | 473.0 | |
| 1.58 | -3.00 | 2.51 | -3.00 | -11.90 | 174.39 | 72.84 | 259.60 | 0.9519 | 581.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 1.46 | -11.84 | 173.32 | 71.77 | 259.73 | 0.9462 | 444.0 | 405.8 | |
| 21.20 | 125.30 | 33.93 | 201.36 | -13.67 | 174.53 | 72.99 | 257.73 | 0.9522 | 556.8 | 168.0 | |
| 0.00 | 0.88 | 0.00 | 1.30 | -12.76 | 173.04 | 71.49 | 258.77 | 0.9444 | 422.0 | 363.6 | |
| 0.00 | 0.96 | 0.00 | 1.23 | -12.97 | 169.57 | 68.03 | 258.68 | 0.9233 | -208.0 | -151.7 | |
| 0.00 | 0.79 | 0.00 | 1.01 | -13.15 | 169.59 | 68.05 | 258.48 | 0.9234 | -259.0 | -209.4 | |
| 0.00 | 1.75 | 0.00 | 2.24 | -14.01 | 169.61 | 68.07 | 257.55 | 0.9234 | -14.0 | -29.0 | |
| 0.00 | 0.53 | 0.00 | 0.68 | -15.23 | 169.81 | 68.27 | 256.23 | 0.9245 | 332.0 | 325.8 | |
| 0.00 | 0.70 | 0.00 | 0.68 | -15.02 | 161.51 | 59.97 | 256.44 | 0.8622 | -410.0 | -343.1 | |
| 0.00 | 0.35 | 0.00 | 0.33 | -14.02 | 160.40 | 58.85 | 257.58 | 0.8523 | -332.0 | -374.2 | |
| 0.00 | 0.96 | 0.00 | 0.90 | -14.93 | 160.24 | 58.70 | 256.51 | 0.8511 | -423.0 | -396.0 | |
| 0.00 | 1.14 | 0.00 | 1.05 | -14.00 | 159.62 | 58.08 | 257.59 | 0.8453 | -526.0 | -479.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
