SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.27 | 153.86 | 34.55 | 114.45 | 10.03 | 146.94 | 45.40 | 289.88 | 0.7472 | -306.6 | -252.2 | |
|
previous
or next observation for the same group /

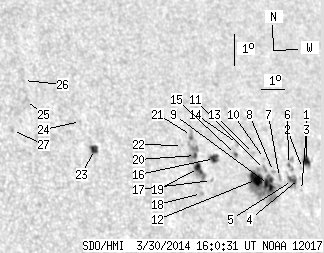

back to the solar disc SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.64 | 6.83 | 3.68 | 5.42 | 10.55 | 150.14 | 48.60 | 289.20 | 0.7831 | -558.0 | -316.5 | |
| 0.00 | 0.79 | 0.00 | 0.62 | 10.31 | 149.91 | 48.36 | 289.00 | 0.7799 | -474.0 | -409.2 | |
| 0.00 | 0.70 | 0.00 | 0.55 | 9.61 | 149.72 | 48.18 | 288.20 | 0.7757 | -433.0 | -397.1 | |
| 0.00 | 2.10 | 0.00 | 1.65 | 9.98 | 149.70 | 48.16 | 288.67 | 0.7767 | -83.0 | -210.0 | |
| 3.07 | 8.67 | 2.38 | 6.74 | 9.89 | 149.36 | 47.82 | 288.68 | 0.7729 | -683.4 | -530.8 | |
| 0.35 | 6.05 | 0.27 | 4.72 | 10.38 | 149.28 | 47.74 | 289.32 | 0.7737 | -597.8 | -436.2 | |
| 0.00 | 2.37 | 0.00 | 1.82 | 9.93 | 148.78 | 47.24 | 288.96 | 0.7670 | -465.0 | -439.4 | |
| 0.00 | 1.49 | 0.00 | 1.14 | 10.10 | 148.55 | 47.00 | 289.26 | 0.7650 | -537.0 | -468.0 | |
| 9.20 | 61.68 | 6.99 | 46.61 | 9.67 | 148.24 | 46.70 | 288.84 | 0.7603 | -806.4 | -470.8 | |
| 0.00 | 0.70 | 0.00 | 0.53 | 10.48 | 148.22 | 46.67 | 289.86 | 0.7629 | -420.0 | -358.5 | |
| 0.00 | 2.80 | 0.00 | 2.13 | 10.13 | 148.15 | 46.61 | 289.45 | 0.7609 | -341.0 | -379.7 | |
| 13.67 | -9.00 | 10.29 | -9.00 | 9.78 | 147.73 | 46.19 | 289.18 | 0.7552 | -1010.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.93 | 10.59 | 147.75 | 46.21 | 290.19 | 0.7584 | -332.0 | -326.9 | |
| 0.00 | 1.84 | 0.00 | 1.38 | 10.85 | 147.10 | 45.56 | 290.79 | 0.7523 | 356.0 | 206.4 | |
| 0.61 | 1.49 | 0.46 | 1.11 | 10.49 | 146.94 | 45.40 | 290.41 | 0.7493 | -688.0 | -640.1 | |
| 4.47 | 6.66 | 3.27 | 4.87 | 10.29 | 146.00 | 44.46 | 290.55 | 0.7383 | 686.9 | 379.3 | |
| 0.00 | 1.31 | 0.00 | 0.95 | 9.58 | 145.75 | 44.21 | 289.75 | 0.7328 | 405.0 | 333.6 | |
| 0.00 | 1.49 | 0.00 | 1.07 | 9.14 | 145.25 | 43.71 | 289.38 | 0.7256 | -646.0 | -483.9 | |
| 5.26 | 29.27 | 3.79 | 21.09 | 9.92 | 145.25 | 43.71 | 290.40 | 0.7286 | 798.2 | 58.1 | |
| 1.23 | -19.00 | 0.88 | -19.00 | 10.32 | 145.20 | 43.65 | 290.94 | 0.7295 | 234.9 | 999999 | |
| 0.00 | 3.24 | 0.00 | 2.35 | 10.94 | 145.14 | 43.60 | 291.77 | 0.7314 | -711.0 | -597.3 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 10.59 | 144.70 | 43.16 | 291.52 | 0.7251 | -610.0 | -538.5 | |
| 3.77 | 5.61 | 2.54 | 3.78 | 10.18 | 141.05 | 39.51 | 292.79 | 0.6815 | 704.8 | 487.4 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 11.02 | 140.63 | 39.09 | 294.17 | 0.6807 | 678.0 | 556.6 | |
| 0.00 | 3.33 | 0.00 | 2.19 | 11.53 | 138.57 | 37.03 | 296.07 | 0.6592 | 84.0 | 209.1 | |
| 0.00 | 1.14 | 0.00 | 0.75 | 12.16 | 138.60 | 37.05 | 296.93 | 0.6630 | 616.0 | 553.2 | |
| 0.00 | 1.49 | 0.00 | 0.96 | 10.55 | 137.93 | 36.39 | 295.09 | 0.6463 | 704.0 | 575.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
