SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 14.45 | 0.28 | 9.19 | 3.74 | 138.95 | 37.41 | 284.35 | 0.6286 | 238.9 | 201.5 | |
|
previous
or next observation for the same group /

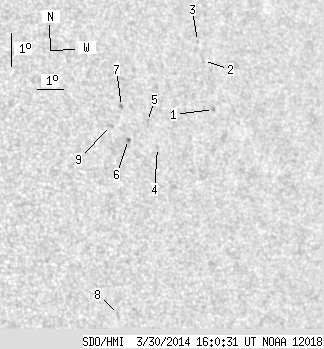

back to the solar disc SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.98 | 4.85 | 141.40 | 39.86 | 285.08 | 0.6637 | -661.0 | -620.5 | |
| 0.00 | 1.66 | 0.00 | 1.10 | 6.32 | 141.13 | 39.59 | 287.33 | 0.6658 | -596.0 | -493.1 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 6.89 | 140.95 | 39.41 | 288.23 | 0.6659 | -534.0 | -500.2 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 3.53 | 139.16 | 37.61 | 284.03 | 0.6302 | 456.0 | 391.4 | |
| 0.00 | 1.75 | 0.00 | 1.11 | 4.29 | 138.82 | 37.28 | 285.35 | 0.6286 | 530.0 | 499.2 | |
| 0.44 | 1.31 | 0.28 | 0.83 | 3.69 | 138.07 | 36.53 | 284.75 | 0.6165 | 764.8 | 732.1 | |
| 0.00 | 1.40 | 0.00 | 0.88 | 4.68 | 137.87 | 36.32 | 286.39 | 0.6176 | 727.0 | 655.6 | |
| 0.00 | 2.28 | 0.00 | 1.40 | -1.63 | 137.62 | 36.08 | 276.30 | 0.5944 | 591.0 | 453.7 | |
| 0.00 | 2.54 | 0.00 | 1.58 | 4.07 | 137.42 | 35.88 | 285.65 | 0.6093 | 725.0 | 496.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
