SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.81 | 0.00 | 5.50 | 15.53 | 115.96 | 14.42 | 327.24 | 0.4647 | 108.3 | 179.5 | |
|
previous
or next observation for the same group /

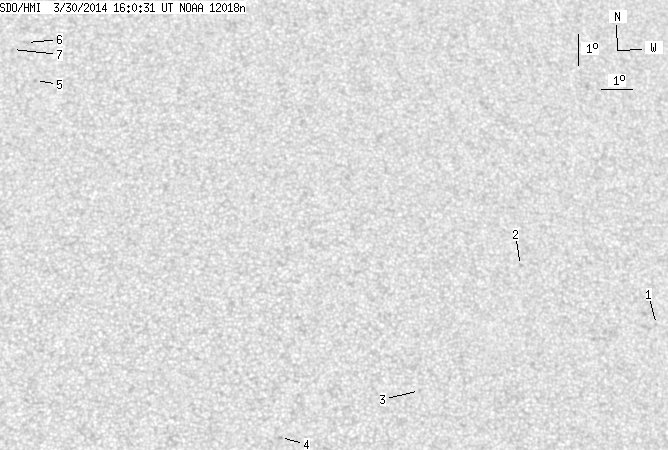

back to the solar disc SDO HMI 2014-03-30 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.52 | 12.00 | 129.61 | 28.07 | 303.62 | 0.5549 | -715.0 | -585.8 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 13.64 | 125.15 | 23.61 | 310.88 | 0.5168 | -725.0 | -603.4 | |
| 0.00 | 1.31 | 0.00 | 0.72 | 9.55 | 121.48 | 19.94 | 308.93 | 0.4341 | -683.0 | -543.0 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 7.93 | 116.98 | 15.43 | 313.15 | 0.3628 | 782.0 | 684.4 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 19.16 | 109.81 | 8.27 | 342.61 | 0.4565 | 751.0 | 527.1 | |
| 0.00 | 2.45 | 0.00 | 1.38 | 20.43 | 109.59 | 8.05 | 343.87 | 0.4742 | 628.0 | 588.9 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 20.19 | 109.13 | 7.58 | 344.61 | 0.4687 | 720.0 | 597.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
