SDO HMI 2014-03-30 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.93 | 8.94 | 1.74 | 7.97 | -5.76 | 157.56 | 56.57 | 267.49 | 0.8333 | 236.3 | 211.2 | |
|
previous
or next observation for the same group /

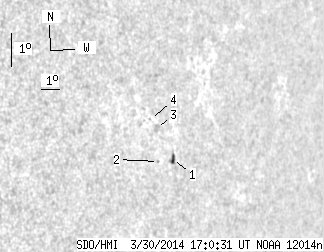

back to the solar disc SDO HMI 2014-03-30 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.93 | 3.77 | 1.74 | 3.41 | -6.15 | 158.13 | 57.14 | 266.97 | 0.8385 | 431.0 | 324.1 | |
| 0.00 | 0.96 | 0.00 | 0.85 | -6.28 | 157.38 | 56.38 | 266.88 | 0.8312 | 421.0 | 319.4 | |
| 0.00 | 3.68 | 0.00 | 3.25 | -5.31 | 157.12 | 56.13 | 268.07 | 0.8294 | 195.0 | 188.3 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -5.07 | 156.77 | 55.77 | 268.39 | 0.8261 | -246.0 | -237.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
