SDO HMI 2014-03-30 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.20 | 0.00 | 9.22 | 4.10 | 139.84 | 38.85 | 284.33 | 0.6484 | -153.6 | 1.5 | |
|
previous
or next observation for the same group /

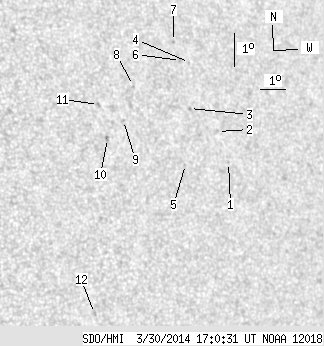

back to the solar disc SDO HMI 2014-03-30 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.59 | 3.32 | 142.86 | 41.87 | 282.14 | 0.6839 | -543.0 | -434.2 | |
| 0.00 | 1.05 | 0.00 | 0.71 | 4.24 | 142.47 | 41.48 | 283.57 | 0.6819 | -404.0 | -357.6 | |
| 0.00 | 1.23 | 0.00 | 0.82 | 4.86 | 141.40 | 40.41 | 284.87 | 0.6706 | -694.0 | -584.1 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 6.27 | 141.52 | 40.53 | 286.85 | 0.6772 | -556.0 | -496.3 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 3.13 | 141.14 | 40.14 | 282.46 | 0.6616 | -545.0 | -416.0 | |
| 0.00 | 1.58 | 0.00 | 1.05 | 6.31 | 141.17 | 40.18 | 287.05 | 0.6730 | -688.0 | -580.4 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 6.87 | 140.95 | 39.96 | 287.95 | 0.6725 | -629.0 | -518.3 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 5.40 | 139.26 | 38.27 | 286.58 | 0.6456 | -609.0 | -561.8 | |
| 0.00 | 1.31 | 0.00 | 0.84 | 4.30 | 138.80 | 37.81 | 285.13 | 0.6355 | 638.0 | 545.6 | |
| 0.00 | 1.93 | 0.00 | 1.22 | 3.71 | 138.16 | 37.17 | 284.50 | 0.6250 | 952.0 | 689.0 | |
| 0.00 | 2.02 | 0.00 | 1.28 | 4.72 | 137.88 | 36.89 | 286.19 | 0.6252 | 656.0 | 567.9 | |
| 0.00 | 1.58 | 0.00 | 0.98 | -1.62 | 137.59 | 36.60 | 276.17 | 0.6017 | 579.0 | 474.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
