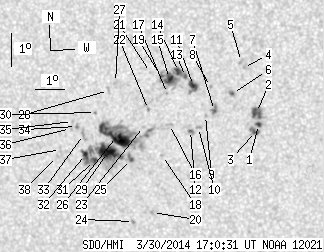

SDO HMI 2014-03-30 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.85 | 258.04 | 46.09 | 145.46 | -13.36 | 72.85 | -28.15 | 105.89 | 0.4790 | -170.0 | -185.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.75 | 2.98 | 0.96 | 1.62 | -13.48 | 76.92 | -24.07 | 108.05 | 0.4190 | 975.4 | 794.4 | |
| 6.22 | 11.39 | 3.39 | 6.20 | -13.12 | 76.89 | -24.10 | 107.19 | 0.4181 | 1048.8 | 829.3 | |
| 1.93 | 5.43 | 1.05 | 2.97 | -13.69 | 76.79 | -24.20 | 108.46 | 0.4216 | 833.0 | 644.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -11.75 | 76.59 | -24.40 | 103.82 | 0.4183 | 875.0 | 762.1 | |
| 0.00 | 2.54 | 0.00 | 1.38 | -11.57 | 76.54 | -24.45 | 103.37 | 0.4186 | 720.0 | 617.3 | |
| 0.79 | 1.93 | 0.43 | 1.06 | -12.51 | 76.14 | -24.85 | 105.41 | 0.4273 | 882.8 | 706.2 | |
| 0.88 | 5.52 | 0.48 | 3.04 | -12.99 | 75.48 | -25.51 | 106.20 | 0.4389 | 965.7 | 802.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -12.26 | 75.42 | -25.57 | 104.54 | 0.4375 | 843.0 | 637.8 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -13.13 | 75.16 | -25.83 | 106.36 | 0.4441 | 715.0 | 500.9 | |
| 0.00 | 2.02 | 0.00 | 1.12 | -13.48 | 74.88 | -26.11 | 106.99 | 0.4495 | 771.0 | 615.8 | |
| 4.73 | 45.30 | 2.62 | 25.15 | -12.21 | 74.85 | -26.14 | 104.19 | 0.4460 | 1034.9 | 512.6 | |
| 0.53 | 2.37 | 0.29 | 1.31 | -13.55 | 74.59 | -26.40 | 107.03 | 0.4539 | 709.2 | 587.5 | |
| 0.88 | -11.00 | 0.49 | -11.00 | -11.92 | 74.61 | -26.38 | 103.47 | 0.4490 | 998.3 | 999999 | |
| 3.50 | -11.00 | 1.94 | -11.00 | -11.76 | 74.39 | -26.61 | 103.04 | 0.4519 | 1025.1 | 999999 | |
| 7.45 | -11.00 | 4.14 | -11.00 | -11.95 | 74.06 | -26.94 | 103.35 | 0.4574 | 773.7 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.22 | -13.33 | 73.90 | -27.10 | 106.26 | 0.4636 | -164.0 | -182.1 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -12.40 | 73.94 | -27.05 | 104.28 | 0.4603 | 266.0 | 266.1 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -14.25 | 73.53 | -27.46 | 108.03 | 0.4719 | 578.0 | 444.5 | |
| 0.79 | -11.00 | 0.44 | -11.00 | -11.88 | 73.79 | -27.20 | 103.11 | 0.4612 | 840.2 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.89 | -15.95 | 72.94 | -28.05 | 111.18 | 0.4869 | -823.0 | -724.2 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -11.74 | 73.43 | -27.57 | 102.69 | 0.4664 | 549.0 | 486.8 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -12.85 | 73.23 | -27.76 | 104.96 | 0.4721 | 613.0 | 418.6 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -13.35 | 72.99 | -28.00 | 105.92 | 0.4770 | -246.0 | -218.4 | |
| 0.00 | 1.66 | 0.00 | 0.95 | -16.19 | 72.23 | -28.76 | 111.27 | 0.4979 | -911.0 | -679.6 | |
| 1.05 | 146.32 | 0.60 | 83.30 | -14.32 | 72.44 | -28.55 | 107.67 | 0.4880 | -976.8 | -593.4 | |
| 27.25 | -25.00 | 15.49 | -25.00 | -13.60 | 72.01 | -28.98 | 106.05 | 0.4920 | -1128.5 | 999999 | |
| 0.00 | 1.66 | 0.00 | 0.94 | -11.97 | 72.18 | -28.81 | 102.82 | 0.4855 | -641.0 | -431.8 | |
| 0.00 | 2.63 | 0.00 | 1.49 | -12.20 | 71.91 | -29.08 | 103.20 | 0.4900 | 614.0 | 428.9 | |
| 17.79 | -25.00 | 10.15 | -25.00 | -14.06 | 71.63 | -29.36 | 106.82 | 0.4990 | -1087.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -12.83 | 71.37 | -29.62 | 104.31 | 0.4994 | 243.0 | 229.3 | |
| 2.63 | -25.00 | 1.51 | -25.00 | -14.27 | 71.14 | -29.86 | 107.05 | 0.5067 | -830.8 | 999999 | |
| 3.33 | -25.00 | 1.91 | -25.00 | -14.07 | 70.84 | -30.15 | 106.56 | 0.5103 | -749.2 | 999999 | |
| 0.00 | 4.56 | 0.00 | 2.62 | -13.47 | 70.86 | -30.13 | 105.39 | 0.5084 | -732.0 | -626.0 | |
| 0.35 | 1.49 | 0.20 | 0.86 | -13.22 | 70.64 | -30.35 | 104.83 | 0.5109 | -909.8 | -759.1 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -13.06 | 70.52 | -30.47 | 104.49 | 0.5122 | -585.0 | -524.2 | |
| 0.00 | 1.58 | 0.00 | 0.91 | -13.26 | 70.42 | -30.57 | 104.85 | 0.5142 | -674.0 | -538.7 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -13.87 | 69.98 | -31.02 | 105.87 | 0.5222 | -592.0 | -507.0 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -14.08 | 69.84 | -31.16 | 106.21 | 0.5247 | -541.0 | -492.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
