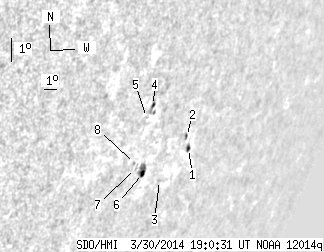

SDO HMI 2014-03-30 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.47 | 23.49 | 5.70 | 29.38 | -25.15 | 167.23 | 67.35 | 245.42 | 0.9200 | -35.0 | 39.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 3.07 | 1.82 | 4.25 | -24.97 | 169.87 | 69.98 | 245.75 | 0.9357 | -288.3 | -195.3 | |
| 0.00 | 1.84 | 0.00 | 2.49 | -24.65 | 169.27 | 69.38 | 246.08 | 0.9322 | -426.0 | -333.4 | |
| 0.00 | 1.31 | 0.00 | 1.74 | -26.16 | 168.62 | 68.73 | 244.42 | 0.9289 | -226.0 | -190.8 | |
| 0.79 | 7.01 | 0.93 | 8.29 | -24.01 | 165.69 | 65.80 | 246.58 | 0.9098 | 238.7 | 43.6 | |
| 0.00 | 0.88 | 0.00 | 1.03 | -24.41 | 165.53 | 65.64 | 246.12 | 0.9089 | -377.0 | -272.7 | |
| 2.37 | 7.89 | 2.95 | 9.78 | -26.09 | 167.01 | 67.13 | 244.39 | 0.9193 | 579.3 | 457.3 | |
| 0.00 | 0.53 | 0.00 | 0.64 | -26.00 | 166.31 | 66.42 | 244.44 | 0.9149 | -262.0 | -239.7 | |
| 0.00 | 0.96 | 0.00 | 1.16 | -25.86 | 166.07 | 66.18 | 244.58 | 0.9133 | -490.0 | -383.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
