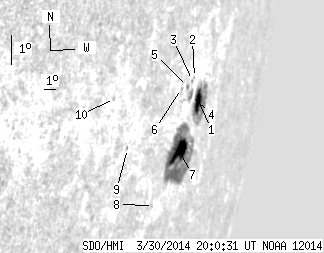

SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.09 | 157.97 | 54.10 | 293.55 | -13.09 | 174.78 | 75.45 | 258.21 | 0.9642 | 376.7 | 103.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.69 | 40.83 | 20.63 | 80.19 | -11.97 | 175.51 | 76.17 | 259.33 | 0.9678 | 195.4 | -172.5 | |
| 0.00 | 0.61 | 0.00 | 1.12 | -11.37 | 174.52 | 75.18 | 260.01 | 0.9636 | 373.0 | 330.7 | |
| 0.00 | 1.14 | 0.00 | 2.05 | -11.48 | 174.36 | 75.02 | 259.91 | 0.9628 | 486.0 | 454.8 | |
| 0.00 | 4.29 | 0.00 | 7.79 | -11.93 | 174.47 | 75.13 | 259.44 | 0.9632 | 626.0 | 534.0 | |
| 0.00 | 1.23 | 0.00 | 2.16 | -11.71 | 173.94 | 74.60 | 259.70 | 0.9608 | 566.0 | 524.1 | |
| 0.00 | 1.31 | 0.00 | 2.24 | -11.84 | 173.34 | 74.01 | 259.60 | 0.9579 | 331.0 | 375.2 | |
| 18.40 | 106.46 | 33.47 | 194.98 | -13.64 | 174.60 | 75.27 | 257.65 | 0.9633 | 487.5 | 167.2 | |
| 0.00 | 0.61 | 0.00 | 1.02 | -15.46 | 173.25 | 73.91 | 255.82 | 0.9565 | 266.0 | 296.7 | |
| 0.00 | 0.79 | 0.00 | 1.10 | -14.10 | 169.49 | 70.15 | 257.39 | 0.9363 | 50.0 | -47.9 | |
| 0.00 | 0.70 | 0.00 | 0.90 | -12.77 | 167.51 | 68.17 | 258.89 | 0.9243 | 347.0 | 322.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
