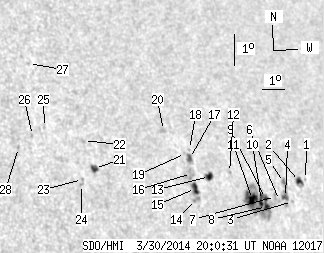

SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.85 | 123.87 | 25.55 | 96.18 | 10.07 | 147.00 | 47.67 | 289.03 | 0.7715 | -176.0 | -295.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.59 | 10.63 | 150.52 | 51.19 | 288.36 | 0.8091 | -260.0 | -218.1 | |
| 3.07 | 6.05 | 2.55 | 5.03 | 10.53 | 150.21 | 50.87 | 288.36 | 0.8058 | -507.5 | -388.6 | |
| 0.00 | 1.05 | 0.00 | 0.86 | 9.87 | 149.72 | 50.39 | 287.73 | 0.7991 | -352.0 | -284.2 | |
| 2.10 | 7.97 | 1.71 | 6.50 | 9.96 | 149.41 | 50.07 | 287.96 | 0.7962 | -615.7 | -454.5 | |
| 0.00 | 4.12 | 0.00 | 3.37 | 10.44 | 149.46 | 50.13 | 288.51 | 0.7982 | -589.0 | -446.9 | |
| 0.00 | 1.31 | 0.00 | 1.06 | 9.84 | 149.10 | 49.76 | 287.92 | 0.7927 | -579.0 | -523.3 | |
| 0.00 | 2.10 | 0.00 | 1.70 | 9.95 | 148.93 | 49.60 | 288.11 | 0.7914 | -626.0 | -458.3 | |
| 3.24 | 55.90 | 2.58 | 44.21 | 9.60 | 148.44 | 49.10 | 287.85 | 0.7853 | -694.4 | -509.8 | |
| 1.49 | -8.00 | 1.19 | -8.00 | 9.85 | 148.44 | 49.11 | 288.16 | 0.7861 | -555.9 | 999999 | |
| 3.68 | -8.00 | 2.92 | -8.00 | 9.77 | 148.24 | 48.90 | 288.13 | 0.7838 | -732.6 | 999999 | |
| 6.57 | -8.00 | 5.17 | -8.00 | 9.76 | 147.82 | 48.49 | 288.28 | 0.7794 | -989.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.89 | 10.52 | 146.92 | 47.59 | 289.56 | 0.7726 | -478.0 | -494.8 | |
| 3.68 | 5.78 | 2.80 | 4.40 | 10.32 | 145.98 | 46.65 | 289.67 | 0.7621 | 569.0 | 346.7 | |
| 0.00 | 3.07 | 0.00 | 2.29 | 9.54 | 145.27 | 45.93 | 288.98 | 0.7516 | -143.0 | 12.6 | |
| 4.38 | 6.48 | 3.28 | 4.86 | 9.88 | 145.28 | 45.95 | 289.41 | 0.7530 | 725.8 | 560.6 | |
| 0.00 | 6.13 | 0.00 | 4.60 | 10.34 | 145.19 | 45.86 | 290.03 | 0.7537 | -218.0 | -114.6 | |
| 1.84 | 5.26 | 1.39 | 3.96 | 10.81 | 145.20 | 45.86 | 290.62 | 0.7555 | -665.8 | -404.1 | |
| 0.00 | 0.61 | 0.00 | 0.46 | 11.10 | 145.26 | 45.92 | 290.95 | 0.7571 | -341.0 | -322.6 | |
| 0.00 | 1.23 | 0.00 | 0.92 | 10.95 | 145.05 | 45.71 | 290.86 | 0.7544 | -437.0 | -341.3 | |
| 0.00 | 2.63 | 0.00 | 1.95 | 11.60 | 144.23 | 44.89 | 292.04 | 0.7481 | -88.0 | -103.6 | |
| 2.80 | 4.47 | 1.96 | 3.12 | 10.16 | 141.06 | 41.72 | 291.64 | 0.7071 | 642.7 | 426.9 | |
| 0.00 | 1.14 | 0.00 | 0.80 | 11.01 | 140.75 | 41.42 | 292.92 | 0.7073 | 633.0 | 553.2 | |
| 0.00 | 0.96 | 0.00 | 0.67 | 9.77 | 140.51 | 41.17 | 291.40 | 0.6991 | 421.0 | 418.0 | |
| 0.00 | 1.40 | 0.00 | 0.97 | 9.61 | 140.44 | 41.11 | 291.21 | 0.6977 | 606.0 | 460.6 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 11.30 | 139.23 | 39.89 | 294.11 | 0.6913 | 587.0 | 467.2 | |
| 0.00 | 1.31 | 0.00 | 0.89 | 11.01 | 138.70 | 39.37 | 294.00 | 0.6839 | 584.0 | 467.5 | |
| 0.00 | 0.96 | 0.00 | 0.66 | 13.29 | 138.96 | 39.62 | 296.90 | 0.6982 | 570.0 | 439.7 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 10.59 | 138.08 | 38.75 | 293.77 | 0.6746 | 792.0 | 640.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
