SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.33 | 0.00 | 10.57 | -12.88 | 82.52 | -16.81 | 111.86 | 0.3055 | 215.5 | 150.2 | |
|
previous
or next observation for the same group /

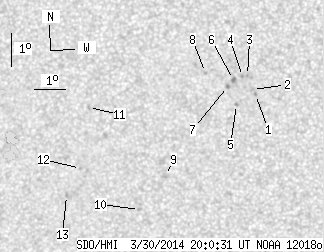

back to the solar disc SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.14 | 84.85 | -14.48 | 112.17 | 0.2652 | 1026.0 | 870.7 | |
| 0.00 | 1.93 | 0.00 | 0.99 | -11.98 | 84.77 | -14.57 | 111.52 | 0.2657 | 759.0 | 584.1 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -11.56 | 84.63 | -14.70 | 109.84 | 0.2656 | 811.0 | 767.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -11.58 | 84.47 | -14.86 | 109.75 | 0.2682 | 836.0 | 668.2 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -12.42 | 84.23 | -15.10 | 112.40 | 0.2764 | 793.0 | 636.9 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -11.66 | 84.18 | -15.15 | 109.73 | 0.2732 | 1007.0 | 859.6 | |
| 0.00 | 1.84 | 0.00 | 0.95 | -11.87 | 83.98 | -15.35 | 110.22 | 0.2774 | 841.0 | 697.9 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -11.43 | 83.31 | -16.03 | 108.04 | 0.2859 | 774.0 | 677.4 | |
| 0.00 | 2.54 | 0.00 | 1.33 | -14.48 | 81.81 | -17.53 | 115.95 | 0.3257 | -530.0 | -493.6 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -15.48 | 80.87 | -18.46 | 117.61 | 0.3460 | -992.0 | -662.5 | |
| 0.00 | 1.93 | 0.00 | 1.02 | -12.34 | 79.48 | -19.85 | 107.77 | 0.3499 | -842.0 | -633.6 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -14.17 | 79.06 | -20.28 | 112.36 | 0.3649 | -858.0 | -585.3 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -14.96 | 78.52 | -20.82 | 113.92 | 0.3772 | -824.0 | -677.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
