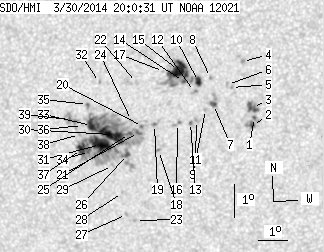

SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.30 | 334.37 | 54.61 | 185.93 | -13.47 | 72.73 | -26.61 | 106.73 | 0.4566 | -211.6 | -259.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 10.25 | 0.33 | 5.53 | -13.47 | 76.91 | -22.43 | 109.00 | 0.3941 | 1045.3 | 722.8 | |
| 1.93 | -1.00 | 1.04 | -1.00 | -13.71 | 76.82 | -22.52 | 109.52 | 0.3965 | 886.3 | 999999 | |
| 4.64 | 8.85 | 2.50 | 4.76 | -13.17 | 76.87 | -22.46 | 108.22 | 0.3934 | 1034.8 | 882.1 | |
| 0.00 | 2.02 | 0.00 | 1.08 | -11.77 | 76.67 | -22.67 | 104.63 | 0.3916 | 929.0 | 792.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -12.54 | 76.23 | -23.10 | 106.30 | 0.4008 | 901.0 | 679.6 | |
| 0.00 | 1.75 | 0.00 | 0.95 | -12.44 | 76.11 | -23.23 | 106.00 | 0.4024 | 708.0 | 582.8 | |
| 1.75 | 6.92 | 0.95 | 3.76 | -13.02 | 75.58 | -23.75 | 107.12 | 0.4124 | 923.1 | 748.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -12.20 | 75.56 | -23.77 | 105.17 | 0.4100 | 752.0 | 676.8 | |
| 0.00 | 1.75 | 0.00 | 0.95 | -13.16 | 75.30 | -24.04 | 107.30 | 0.4172 | 600.0 | 410.9 | |
| 4.21 | 52.84 | 2.29 | 28.89 | -12.30 | 75.15 | -24.18 | 105.22 | 0.4166 | 1082.3 | 307.4 | |
| 0.00 | 2.02 | 0.00 | 1.10 | -13.47 | 74.96 | -24.37 | 107.85 | 0.4234 | 864.0 | 657.5 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -12.60 | 74.99 | -24.35 | 105.83 | 0.4200 | 689.0 | 543.7 | |
| 0.35 | 1.66 | 0.19 | 0.91 | -13.52 | 74.75 | -24.58 | 107.86 | 0.4268 | 871.8 | 712.2 | |
| 0.96 | -10.00 | 0.53 | -10.00 | -12.28 | 74.65 | -24.69 | 104.94 | 0.4242 | 744.1 | 999999 | |
| 21.03 | -10.00 | 11.50 | -10.00 | -11.94 | 74.51 | -24.82 | 104.09 | 0.4253 | 986.2 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.78 | -13.53 | 74.31 | -25.03 | 107.64 | 0.4334 | 429.0 | 195.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -11.95 | 74.01 | -25.33 | 103.91 | 0.4330 | 186.0 | 214.3 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -14.31 | 73.57 | -25.77 | 108.98 | 0.4473 | 786.0 | 581.2 | |
| 0.35 | 3.07 | 0.19 | 1.69 | -13.52 | 73.53 | -25.81 | 107.24 | 0.4451 | -1045.8 | -848.3 | |
| 0.00 | 1.75 | 0.00 | 0.97 | -13.56 | 73.11 | -26.23 | 107.13 | 0.4514 | -968.0 | -816.2 | |
| 1.40 | 206.00 | 0.78 | 115.52 | -13.74 | 72.95 | -26.38 | 107.43 | 0.4543 | -1050.5 | -535.0 | |
| 0.00 | 1.84 | 0.00 | 1.02 | -12.23 | 73.06 | -26.28 | 104.19 | 0.4482 | -94.0 | -4.6 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -16.38 | 72.48 | -26.85 | 112.72 | 0.4717 | -756.0 | -642.9 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -13.36 | 72.76 | -26.58 | 106.53 | 0.4560 | -844.0 | -676.5 | |
| 1.40 | -21.00 | 0.78 | -21.00 | -13.75 | 72.64 | -26.70 | 107.31 | 0.4590 | -1098.0 | 999999 | |
| 1.93 | -21.00 | 1.08 | -21.00 | -14.38 | 72.49 | -26.85 | 108.57 | 0.4634 | -1040.4 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -16.19 | 72.20 | -27.14 | 112.15 | 0.4749 | -768.0 | -590.0 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -15.52 | 72.16 | -27.18 | 110.76 | 0.4726 | -629.0 | -577.5 | |
| 0.00 | 1.58 | 0.00 | 0.89 | -14.68 | 71.93 | -27.41 | 108.93 | 0.4727 | -104.0 | -113.2 | |
| 20.59 | -21.00 | 11.53 | -21.00 | -13.75 | 72.02 | -27.32 | 107.03 | 0.4682 | -1261.5 | 999999 | |
| 21.20 | -21.00 | 11.92 | -21.00 | -14.03 | 71.60 | -27.74 | 107.43 | 0.4752 | -1106.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -12.16 | 71.79 | -27.54 | 103.60 | 0.4670 | 636.0 | 454.9 | |
| 7.10 | -21.00 | 3.99 | -21.00 | -13.44 | 71.36 | -27.98 | 106.11 | 0.4769 | -960.0 | 999999 | |
| 1.23 | -21.00 | 0.69 | -21.00 | -14.22 | 71.19 | -28.15 | 107.64 | 0.4819 | -894.9 | 999999 | |
| 0.61 | 2.54 | 0.35 | 1.43 | -12.80 | 71.30 | -28.04 | 104.77 | 0.4760 | 198.7 | -59.5 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -13.42 | 71.05 | -28.29 | 105.96 | 0.4814 | -567.0 | -481.0 | |
| 6.22 | -21.00 | 3.52 | -21.00 | -14.14 | 70.92 | -28.42 | 107.37 | 0.4855 | -769.7 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -13.69 | 70.91 | -28.43 | 106.44 | 0.4843 | -673.0 | -519.7 | |
| 0.79 | 9.73 | 0.45 | 5.51 | -13.22 | 70.62 | -28.72 | 105.38 | 0.4871 | -891.3 | -675.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
