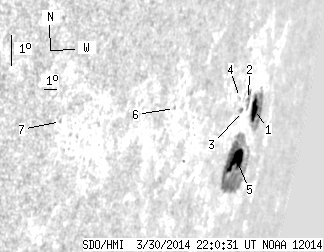

SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.90 | 141.28 | 53.93 | 281.79 | -13.10 | 174.79 | 76.56 | 258.14 | 0.9689 | 310.1 | 94.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.60 | 33.04 | 22.10 | 70.41 | -11.97 | 175.53 | 77.30 | 259.25 | 0.9724 | 160.4 | -227.3 | |
| 0.00 | 6.92 | 0.00 | 13.52 | -11.77 | 174.53 | 76.30 | 259.52 | 0.9684 | 495.0 | 389.5 | |
| 0.00 | 0.88 | 0.00 | 1.66 | -12.19 | 174.11 | 75.88 | 259.12 | 0.9664 | 505.0 | 500.7 | |
| 0.00 | 0.53 | 0.00 | 0.96 | -11.83 | 173.44 | 75.21 | 259.53 | 0.9635 | 474.0 | 471.3 | |
| 16.30 | 98.33 | 31.83 | 193.41 | -13.61 | 174.66 | 76.43 | 257.62 | 0.9684 | 424.6 | 161.3 | |
| 0.00 | 0.70 | 0.00 | 0.94 | -12.82 | 167.48 | 69.25 | 258.80 | 0.9311 | 240.0 | 244.0 | |
| 0.00 | 0.88 | 0.00 | 0.89 | -14.03 | 159.61 | 61.38 | 257.61 | 0.8739 | -501.0 | -462.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
