SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.41 | 0.00 | 6.20 | -26.42 | 85.35 | -12.88 | 153.28 | 0.4067 | 70.2 | -25.7 | |
|
previous
or next observation for the same group /

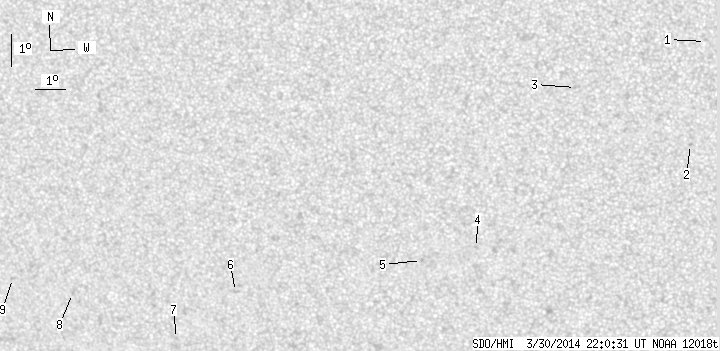

back to the solar disc SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.22 | -20.33 | 98.60 | 0.37 | 181.47 | 0.2380 | 417.0 | 465.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -23.52 | 98.12 | -0.11 | 179.64 | 0.2920 | 765.0 | 611.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -21.73 | 94.41 | -3.82 | 166.66 | 0.2693 | 809.0 | 646.4 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -26.72 | 90.92 | -7.31 | 161.73 | 0.3643 | 774.0 | 618.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -27.10 | 89.02 | -9.21 | 157.92 | 0.3806 | 736.0 | 576.4 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -27.94 | 82.49 | -15.74 | 146.87 | 0.4404 | -527.0 | -510.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -29.38 | 80.14 | -18.09 | 145.38 | 0.4781 | -794.0 | -625.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -27.79 | 76.68 | -21.55 | 138.58 | 0.4931 | -716.0 | -544.6 | |
| 0.00 | 1.67 | 0.00 | 0.96 | -27.22 | 74.61 | -23.62 | 135.33 | 0.5088 | -832.0 | -629.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
