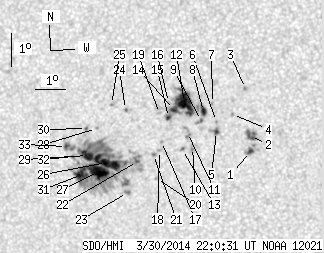

SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.69 | 340.73 | 55.43 | 188.04 | -13.50 | 72.51 | -25.73 | 107.24 | 0.4436 | -177.5 | -288.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.10 | 7.71 | 1.13 | 4.13 | -13.67 | 76.78 | -21.45 | 110.16 | 0.3802 | 911.1 | 737.8 | |
| 3.24 | 8.24 | 1.73 | 4.40 | -13.22 | 76.82 | -21.41 | 109.04 | 0.3775 | 1040.5 | 935.8 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -11.77 | 76.79 | -21.44 | 105.24 | 0.3726 | 1084.0 | 891.0 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -12.53 | 76.29 | -21.94 | 106.94 | 0.3829 | 829.0 | 605.7 | |
| 1.40 | 4.38 | 0.75 | 2.36 | -13.02 | 75.72 | -22.52 | 107.82 | 0.3936 | 966.6 | 752.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -12.72 | 75.74 | -22.49 | 107.09 | 0.3920 | 847.0 | 742.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -12.17 | 75.66 | -22.57 | 105.68 | 0.3914 | 712.0 | 651.2 | |
| 3.59 | 49.69 | 1.94 | 26.91 | -12.40 | 75.34 | -22.89 | 106.08 | 0.3970 | 1172.7 | 544.1 | |
| 0.53 | 3.15 | 0.28 | 1.70 | -12.67 | 75.25 | -22.98 | 106.69 | 0.3994 | 814.3 | 644.0 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -13.46 | 74.87 | -23.36 | 108.40 | 0.4082 | 564.0 | 652.6 | |
| 0.00 | 4.91 | 0.00 | 2.66 | -13.01 | 74.75 | -23.48 | 107.24 | 0.4083 | 570.0 | 475.8 | |
| 23.40 | -8.00 | 12.67 | -8.00 | -12.10 | 74.74 | -23.49 | 105.05 | 0.4054 | 1064.4 | 999999 | |
| 0.44 | 1.58 | 0.24 | 0.86 | -13.51 | 74.53 | -23.70 | 108.31 | 0.4135 | 693.0 | 547.1 | |
| 3.68 | -8.00 | 2.00 | -8.00 | -12.29 | 74.38 | -23.85 | 105.35 | 0.4114 | 507.5 | 999999 | |
| 1.58 | -8.00 | 0.86 | -8.00 | -12.53 | 74.16 | -24.07 | 105.79 | 0.4156 | 550.2 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -12.08 | 74.20 | -24.03 | 104.74 | 0.4135 | 188.0 | 130.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -13.24 | 73.85 | -24.38 | 107.30 | 0.4227 | -871.0 | -731.3 | |
| 0.00 | 1.67 | 0.00 | 0.91 | -13.50 | 73.75 | -24.48 | 107.86 | 0.4251 | -877.0 | -660.8 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -12.39 | 73.87 | -24.36 | 105.34 | 0.4196 | -276.0 | -224.7 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -14.34 | 73.55 | -24.68 | 109.66 | 0.4314 | 808.0 | 623.9 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -13.61 | 73.54 | -24.70 | 108.00 | 0.4288 | -932.0 | -748.9 | |
| 0.96 | 228.47 | 0.53 | 127.06 | -13.80 | 72.97 | -25.26 | 108.12 | 0.4379 | -1001.5 | -513.7 | |
| 0.00 | 2.54 | 0.00 | 1.41 | -14.71 | 72.51 | -25.72 | 109.88 | 0.4482 | -955.0 | -799.2 | |
| 0.35 | 1.40 | 0.19 | 0.77 | -12.22 | 72.74 | -25.49 | 104.45 | 0.4362 | 657.0 | 518.5 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -12.04 | 72.28 | -25.95 | 103.89 | 0.4427 | -807.0 | -650.0 | |
| 18.32 | -22.00 | 10.17 | -22.00 | -13.77 | 71.91 | -26.32 | 107.54 | 0.4535 | -1276.5 | 999999 | |
| 19.37 | -22.00 | 10.79 | -22.00 | -14.03 | 71.60 | -26.63 | 107.94 | 0.4590 | -1135.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -12.74 | 71.69 | -26.54 | 105.19 | 0.4535 | -906.0 | -744.2 | |
| 8.15 | -22.00 | 4.55 | -22.00 | -13.53 | 71.28 | -26.95 | 106.73 | 0.4620 | -1045.5 | 999999 | |
| 0.53 | 1.05 | 0.29 | 0.59 | -12.72 | 71.35 | -26.88 | 105.02 | 0.4586 | 331.3 | 232.7 | |
| 10.95 | -22.00 | 6.13 | -22.00 | -14.09 | 71.01 | -27.23 | 107.79 | 0.4679 | -841.1 | 999999 | |
| 0.35 | -22.00 | 0.20 | -22.00 | -13.53 | 70.76 | -27.47 | 106.51 | 0.4697 | -662.2 | 999999 | |
| 1.75 | 10.08 | 0.98 | 5.65 | -13.22 | 70.60 | -27.64 | 105.79 | 0.4712 | -831.2 | -662.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
