SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.92 | 44.43 | 13.05 | 24.24 | -24.09 | 116.44 | 18.21 | 222.97 | 0.4202 | 207.7 | 54.3 | |
|
previous
or next observation for the same group /

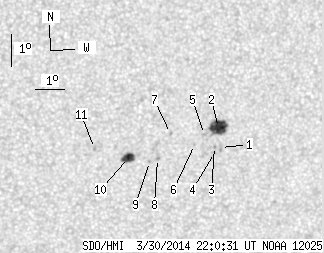

back to the solar disc SDO HMI 2014-03-30 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.15 | 0.00 | 1.73 | -24.29 | 117.56 | 19.33 | 224.28 | 0.4340 | 249.0 | 313.3 | |
| 16.65 | 20.95 | 9.11 | 11.46 | -23.67 | 117.40 | 19.17 | 225.16 | 0.4258 | 948.8 | 653.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -24.27 | 117.35 | 19.12 | 224.03 | 0.4314 | 662.0 | 584.5 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -24.46 | 117.38 | 19.15 | 223.74 | 0.4337 | 663.0 | 527.6 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -23.90 | 116.95 | 18.72 | 224.11 | 0.4233 | 214.0 | 202.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -24.23 | 116.65 | 18.42 | 223.11 | 0.4234 | 780.0 | 595.9 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -23.91 | 115.78 | 17.55 | 222.38 | 0.4106 | -548.0 | -479.0 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -24.71 | 115.44 | 17.21 | 220.46 | 0.4159 | -808.0 | -636.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -24.81 | 115.18 | 16.95 | 219.88 | 0.4144 | -710.0 | -567.1 | |
| 7.27 | 9.99 | 3.94 | 5.41 | -24.71 | 114.44 | 16.21 | 218.88 | 0.4058 | -952.6 | -678.0 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -24.46 | 113.25 | 15.02 | 217.28 | 0.3911 | -812.0 | -772.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
