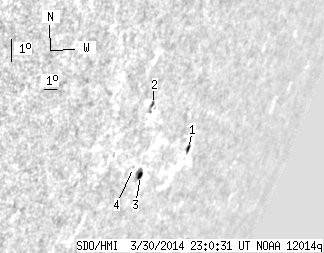

SDO HMI 2014-03-30 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.38 | 14.28 | 6.18 | 19.65 | -25.28 | 167.50 | 69.82 | 245.42 | 0.9345 | 160.0 | 211.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 3.24 | 2.32 | 5.05 | -24.90 | 170.31 | 72.63 | 245.92 | 0.9496 | -12.6 | -32.7 | |
| 0.70 | 3.77 | 0.89 | 4.81 | -23.96 | 165.56 | 67.88 | 246.75 | 0.9231 | 308.4 | 176.5 | |
| 2.19 | 6.66 | 2.97 | 8.99 | -26.13 | 167.07 | 69.39 | 244.49 | 0.9327 | 435.8 | 423.4 | |
| 0.00 | 0.61 | 0.00 | 0.80 | -25.95 | 166.19 | 68.51 | 244.63 | 0.9276 | -391.0 | -374.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
