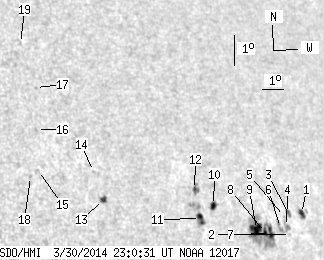

SDO HMI 2014-03-30 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.95 | 107.63 | 24.96 | 86.61 | 10.05 | 147.10 | 49.42 | 288.35 | 0.7895 | -157.3 | -271.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-30 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.89 | 4.91 | 2.50 | 4.24 | 10.47 | 150.23 | 52.55 | 287.72 | 0.8218 | -412.2 | -271.3 | |
| 0.00 | 0.44 | 0.00 | 0.37 | 9.75 | 149.51 | 51.83 | 287.11 | 0.8129 | -392.0 | -363.2 | |
| 0.88 | 3.24 | 0.75 | 2.76 | 10.41 | 149.57 | 51.89 | 287.87 | 0.8153 | -436.3 | -333.8 | |
| 0.00 | 5.00 | 0.00 | 4.22 | 9.99 | 149.37 | 51.69 | 287.44 | 0.8122 | -600.0 | -456.9 | |
| 0.00 | 0.61 | 0.00 | 0.52 | 10.30 | 149.34 | 51.66 | 287.81 | 0.8128 | -500.0 | -462.4 | |
| 0.00 | 3.94 | 0.00 | 3.31 | 9.93 | 149.06 | 51.38 | 287.47 | 0.8090 | -603.0 | -412.2 | |
| 4.38 | 54.96 | 3.63 | 45.02 | 9.69 | 148.52 | 50.84 | 287.37 | 0.8031 | -501.7 | -437.6 | |
| 1.93 | -7.00 | 1.59 | -7.00 | 9.70 | 148.28 | 50.60 | 287.46 | 0.8007 | -598.4 | 999999 | |
| 10.17 | -7.00 | 8.29 | -7.00 | 9.76 | 147.86 | 50.18 | 287.67 | 0.7967 | -781.6 | 999999 | |
| 3.07 | 4.82 | 2.41 | 3.79 | 10.33 | 145.97 | 48.29 | 289.06 | 0.7793 | 495.7 | 353.2 | |
| 4.38 | 14.20 | 3.39 | 10.98 | 9.87 | 145.28 | 47.60 | 288.74 | 0.7706 | 634.5 | 47.5 | |
| 1.23 | 5.87 | 0.95 | 4.57 | 10.77 | 145.19 | 47.51 | 289.89 | 0.7727 | -604.7 | -421.0 | |
| 2.02 | 3.77 | 1.45 | 2.71 | 10.11 | 141.10 | 43.42 | 290.78 | 0.7261 | 578.0 | 422.2 | |
| 0.00 | 0.79 | 0.00 | 0.57 | 10.96 | 140.83 | 43.15 | 292.01 | 0.7266 | 556.0 | 441.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | 10.81 | 138.54 | 40.86 | 292.94 | 0.7001 | 623.0 | 544.0 | |
| 0.00 | 1.14 | 0.00 | 0.80 | 12.11 | 138.69 | 41.01 | 294.58 | 0.7079 | 674.0 | 536.2 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 13.45 | 138.92 | 41.24 | 296.20 | 0.7169 | 445.0 | 430.5 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 10.60 | 138.18 | 40.50 | 292.84 | 0.6951 | 751.0 | 612.8 | |
| 0.00 | 1.23 | 0.00 | 0.87 | 14.83 | 138.61 | 40.93 | 298.12 | 0.7204 | 546.0 | 400.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
