SDO HMI 2014-03-31 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.42 | 35.94 | 11.22 | 19.73 | -24.10 | 116.41 | 19.29 | 224.47 | 0.4321 | 355.9 | 150.0 | |
|
previous
or next observation for the same group /

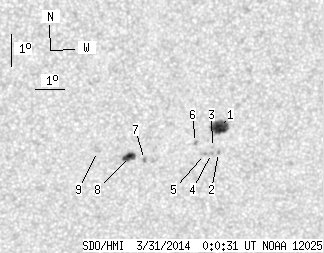

back to the solar disc SDO HMI 2014-03-31 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.46 | 18.32 | 7.97 | 10.09 | -23.66 | 117.44 | 20.31 | 226.71 | 0.4387 | 939.6 | 696.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -24.44 | 117.54 | 20.41 | 225.44 | 0.4474 | 635.0 | 542.7 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -24.29 | 117.30 | 20.17 | 225.40 | 0.4433 | 735.0 | 510.7 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -24.48 | 117.30 | 20.17 | 225.06 | 0.4452 | 682.0 | 536.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -24.52 | 117.06 | 19.93 | 224.68 | 0.4430 | 633.0 | 554.0 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -24.16 | 116.69 | 19.56 | 224.82 | 0.4352 | 813.0 | 695.0 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -24.75 | 115.00 | 17.88 | 221.40 | 0.4233 | -862.0 | -668.2 | |
| 5.96 | 8.50 | 3.25 | 4.63 | -24.67 | 114.47 | 17.35 | 220.73 | 0.4170 | -914.4 | -702.9 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -24.55 | 113.36 | 16.23 | 219.17 | 0.4042 | -668.0 | -577.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
