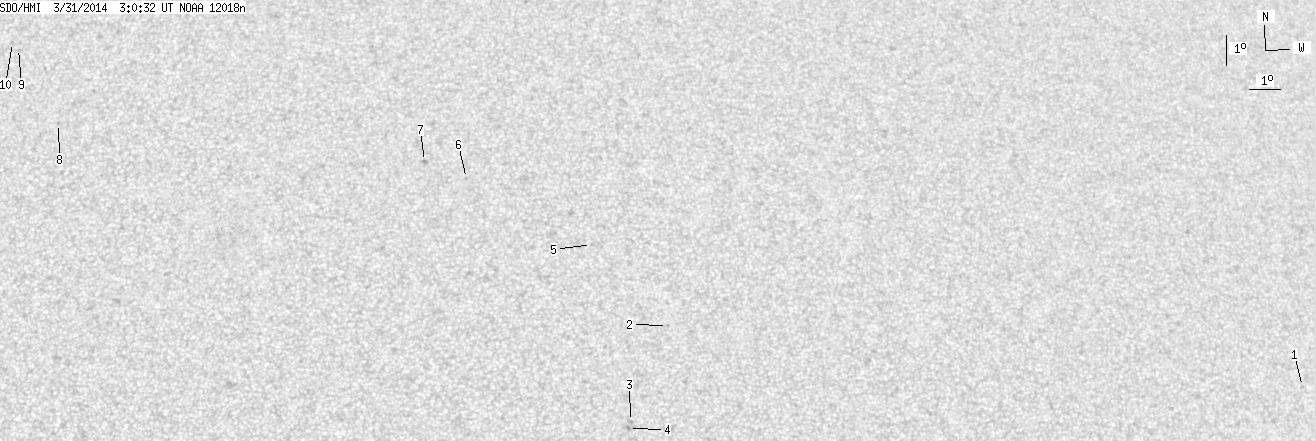

SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.33 | 0.00 | 7.38 | 17.26 | 98.29 | 2.82 | 351.30 | 0.4399 | 549.0 | 509.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.53 | 13.53 | 125.10 | 29.62 | 304.44 | 0.5849 | -594.0 | -489.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 14.68 | 104.31 | 8.83 | 337.68 | 0.3927 | 662.0 | 601.3 | |
| 0.00 | 2.37 | 0.00 | 1.25 | 11.60 | 103.05 | 7.57 | 337.50 | 0.3387 | 770.0 | 644.9 | |
| 0.00 | 1.84 | 0.00 | 0.97 | 11.38 | 102.98 | 7.50 | 337.42 | 0.3349 | 946.0 | 811.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 17.27 | 102.02 | 6.54 | 344.93 | 0.4203 | 635.0 | 416.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 19.42 | 98.12 | 2.64 | 354.34 | 0.4427 | 647.0 | 523.2 | |
| 0.00 | 2.54 | 0.00 | 1.41 | 19.99 | 96.79 | 1.32 | 357.24 | 0.4500 | 782.0 | 634.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 21.40 | 84.97 | -10.50 | 19.94 | 0.4997 | 660.0 | 477.6 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 24.02 | 83.43 | -12.05 | 20.60 | 0.5439 | 385.0 | 415.4 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 24.23 | 83.21 | -12.27 | 20.79 | 0.5479 | 597.0 | 441.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
