SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.00 | 0.00 | 6.36 | -24.89 | 89.01 | -6.47 | 167.17 | 0.3445 | 190.4 | 163.6 | |
|
previous
or next observation for the same group /

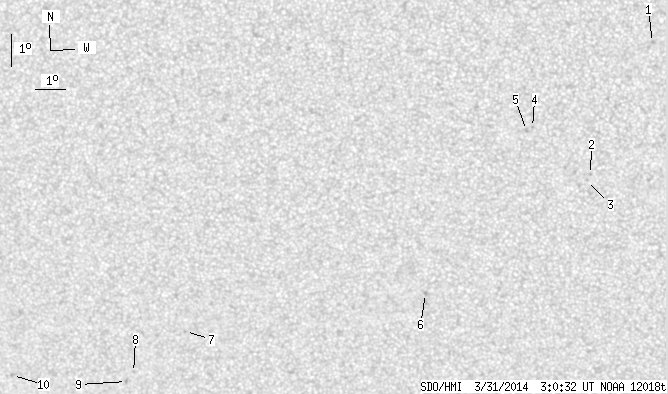

back to the solar disc SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.76 | -18.90 | 98.16 | 2.68 | 191.74 | 0.2186 | 801.0 | 656.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -22.99 | 96.21 | 0.73 | 182.39 | 0.2835 | 830.0 | 596.4 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -23.17 | 96.12 | 0.64 | 182.05 | 0.2866 | 679.0 | 547.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -21.52 | 94.34 | -1.14 | 175.89 | 0.2592 | 756.0 | 621.6 | |
| 0.00 | 1.84 | 0.00 | 0.94 | -21.61 | 94.15 | -1.33 | 175.22 | 0.2610 | 766.0 | 539.7 | |
| 0.00 | 1.84 | 0.00 | 0.97 | -26.71 | 90.69 | -4.79 | 167.78 | 0.3536 | 953.0 | 698.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -27.78 | 82.41 | -13.07 | 151.20 | 0.4170 | -625.0 | -532.0 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -29.06 | 80.41 | -15.07 | 149.47 | 0.4492 | -693.0 | -614.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -29.34 | 80.12 | -15.36 | 149.37 | 0.4551 | -892.0 | -762.0 | |
| 0.00 | 1.58 | 0.00 | 0.89 | -29.01 | 76.08 | -19.40 | 143.09 | 0.4857 | -671.0 | -613.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
