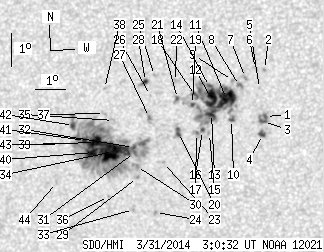

SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.59 | 459.65 | 67.62 | 247.78 | -13.42 | 73.03 | -22.45 | 108.89 | 0.3940 | -204.0 | -133.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 8.42 | 0.60 | 4.42 | -13.14 | 76.92 | -18.56 | 111.10 | 0.3337 | 1092.1 | 843.5 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -11.73 | 76.99 | -18.48 | 107.02 | 0.3261 | 988.0 | 816.9 | |
| 1.93 | -1.00 | 1.01 | -1.00 | -13.29 | 76.84 | -18.64 | 111.45 | 0.3356 | 1066.7 | 999999 | |
| 2.10 | 4.65 | 1.11 | 2.45 | -13.68 | 76.78 | -18.70 | 112.49 | 0.3387 | 880.9 | 768.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.29 | 76.79 | -18.69 | 108.53 | 0.3316 | 779.0 | 593.2 | |
| 0.00 | 2.37 | 0.00 | 1.24 | -11.69 | 76.71 | -18.77 | 106.69 | 0.3305 | 888.0 | 737.2 | |
| 0.00 | 2.19 | 0.00 | 1.15 | -11.95 | 76.36 | -19.11 | 107.21 | 0.3369 | 1050.0 | 881.4 | |
| 0.00 | 3.95 | 0.00 | 2.08 | -12.18 | 76.15 | -19.33 | 107.72 | 0.3411 | 1100.0 | 880.2 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -12.02 | 75.94 | -19.54 | 107.12 | 0.3438 | 942.0 | 785.1 | |
| 0.96 | 127.26 | 0.51 | 67.47 | -13.19 | 75.81 | -19.67 | 110.29 | 0.3509 | 878.1 | 430.0 | |
| 20.00 | -10.00 | 10.57 | -10.00 | -12.55 | 75.70 | -19.78 | 108.44 | 0.3497 | 1214.5 | 999999 | |
| 12.19 | -10.00 | 6.46 | -10.00 | -12.53 | 75.21 | -20.27 | 108.04 | 0.3572 | 1080.4 | 999999 | |
| 5.44 | -10.00 | 2.88 | -10.00 | -12.98 | 75.17 | -20.31 | 109.24 | 0.3597 | 844.9 | 999999 | |
| 1.67 | -10.00 | 0.88 | -10.00 | -12.17 | 75.17 | -20.30 | 107.03 | 0.3563 | 804.7 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -13.58 | 75.05 | -20.43 | 110.74 | 0.3643 | 429.0 | 435.8 | |
| 1.05 | -10.00 | 0.56 | -10.00 | -13.48 | 74.83 | -20.65 | 110.31 | 0.3672 | 725.3 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.82 | -13.57 | 74.63 | -20.85 | 110.36 | 0.3707 | 484.0 | 161.7 | |
| 2.10 | -10.00 | 1.12 | -10.00 | -12.42 | 74.70 | -20.78 | 107.40 | 0.3647 | 676.6 | 999999 | |
| 1.14 | -10.00 | 0.61 | -10.00 | -12.69 | 74.57 | -20.90 | 108.03 | 0.3677 | 686.5 | 999999 | |
| 2.63 | 7.45 | 1.41 | 3.99 | -13.51 | 74.04 | -21.44 | 109.79 | 0.3794 | -1172.8 | -849.2 | |
| 0.79 | 3.86 | 0.42 | 2.06 | -12.49 | 74.10 | -21.38 | 107.19 | 0.3742 | 749.2 | 431.3 | |
| 0.00 | 2.98 | 0.00 | 1.59 | -11.97 | 74.08 | -21.40 | 105.84 | 0.3727 | -182.0 | -73.7 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -14.39 | 73.45 | -22.03 | 111.56 | 0.3923 | 747.0 | 516.7 | |
| 0.00 | 2.02 | 0.00 | 1.09 | -15.89 | 73.01 | -22.47 | 114.79 | 0.4066 | -848.0 | -696.9 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -11.76 | 73.40 | -22.08 | 104.93 | 0.3825 | 706.0 | 416.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -12.36 | 73.22 | -22.26 | 106.35 | 0.3873 | -696.0 | -531.7 | |
| 0.00 | 4.91 | 0.00 | 2.64 | -13.02 | 73.12 | -22.36 | 107.95 | 0.3912 | -1036.0 | -795.2 | |
| 1.93 | 4.47 | 1.04 | 2.40 | -11.93 | 73.09 | -22.39 | 105.20 | 0.3878 | 740.9 | 450.9 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -14.81 | 72.53 | -22.95 | 111.89 | 0.4079 | -893.0 | -726.2 | |
| 0.00 | 4.82 | 0.00 | 2.61 | -14.47 | 72.54 | -22.94 | 111.10 | 0.4063 | -837.0 | -691.5 | |
| 0.70 | 256.54 | 0.38 | 139.84 | -14.05 | 72.51 | -22.96 | 110.08 | 0.4047 | -901.4 | -432.7 | |
| 1.49 | -31.00 | 0.81 | -31.00 | -13.90 | 72.50 | -22.98 | 109.70 | 0.4043 | -1171.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.77 | 72.28 | -23.20 | 113.92 | 0.4164 | -861.0 | -722.2 | |
| 35.70 | -31.00 | 19.42 | -31.00 | -13.99 | 71.82 | -23.66 | 109.49 | 0.4149 | -1259.0 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -13.05 | 71.91 | -23.56 | 107.34 | 0.4097 | -28.0 | -90.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.34 | 71.49 | -23.99 | 112.36 | 0.4258 | -673.0 | -528.4 | |
| 0.00 | 2.10 | 0.00 | 1.14 | -12.83 | 71.64 | -23.84 | 106.66 | 0.4132 | -876.0 | -722.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -12.08 | 71.71 | -23.77 | 104.90 | 0.4096 | -761.0 | -566.2 | |
| 14.38 | -31.00 | 7.85 | -31.00 | -13.69 | 71.24 | -24.24 | 108.45 | 0.4223 | -1204.3 | 999999 | |
| 12.37 | -31.00 | 6.76 | -31.00 | -13.99 | 71.14 | -24.34 | 109.08 | 0.4250 | -1018.4 | 999999 | |
| 3.60 | -31.00 | 1.97 | -31.00 | -13.61 | 70.91 | -24.57 | 108.10 | 0.4269 | -954.8 | 999999 | |
| 2.28 | -31.00 | 1.25 | -31.00 | -13.14 | 70.56 | -24.92 | 106.84 | 0.4306 | -840.5 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -13.69 | 70.02 | -25.46 | 107.80 | 0.4406 | -687.0 | -545.5 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -14.83 | 69.77 | -25.71 | 110.17 | 0.4486 | -595.0 | -519.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
