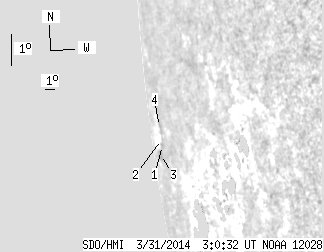

SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.61 | 0.00 | 54.55 | -8.64 | 10.18 | -85.30 | 98.08 | 0.9956 | 228.8 | 90.4 | |
|
next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 11.46 | -8.69 | 10.76 | -84.72 | 98.08 | 0.9947 | 272.0 | 226.6 | |
| 0.00 | 0.61 | 0.00 | 2.78 | -8.51 | 10.73 | -84.75 | 97.89 | 0.9947 | 364.0 | 318.9 | |
| 0.00 | 5.00 | 0.00 | 28.49 | -8.85 | 9.68 | -85.80 | 98.34 | 0.9964 | 56.0 | -33.4 | |
| 0.00 | 2.54 | 0.00 | 11.82 | -8.11 | 10.71 | -84.77 | 97.50 | 0.9949 | 223.0 | 202.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
