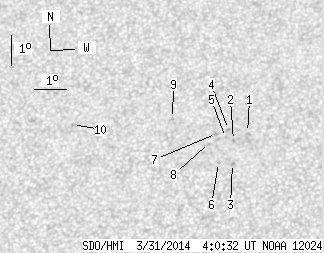

SDO HMI 2014-03-31 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.73 | 0.00 | 5.31 | 17.63 | 89.98 | -4.95 | 11.26 | 0.4207 | -570.3 | -497.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.38 | 17.82 | 91.32 | -3.61 | 8.26 | 0.4194 | -410.0 | -474.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 17.56 | 90.88 | -4.05 | 9.34 | 0.4164 | -878.0 | -751.4 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 16.81 | 90.87 | -4.06 | 9.70 | 0.4045 | -866.0 | -718.1 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 17.92 | 90.72 | -4.21 | 9.57 | 0.4225 | -732.0 | -636.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 17.66 | 90.63 | -4.30 | 9.87 | 0.4186 | -700.0 | -646.6 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 16.84 | 90.43 | -4.50 | 10.70 | 0.4064 | -756.0 | -681.2 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 17.80 | 90.34 | -4.59 | 10.46 | 0.4215 | -722.0 | -601.2 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 17.50 | 90.13 | -4.80 | 11.07 | 0.4176 | -669.0 | -662.6 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 18.31 | 88.93 | -6.00 | 13.27 | 0.4340 | -743.0 | -578.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 18.17 | 85.76 | -9.17 | 19.94 | 0.4461 | 773.0 | 694.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
