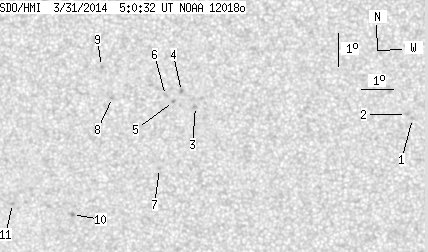

SDO HMI 2014-03-31 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.60 | 0.00 | 8.40 | -12.74 | 84.16 | -10.23 | 124.60 | 0.2085 | 547.7 | 387.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.61 | -12.57 | 91.50 | -2.88 | 154.76 | 0.1157 | 824.0 | 579.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -12.45 | 91.32 | -3.07 | 152.90 | 0.1152 | 842.0 | 631.4 | |
| 0.00 | 2.02 | 0.00 | 1.02 | -12.12 | 84.82 | -9.57 | 121.03 | 0.1905 | 1011.0 | 762.0 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -11.66 | 84.40 | -9.98 | 117.90 | 0.1930 | 963.0 | 765.1 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.95 | 84.14 | -10.24 | 118.67 | 0.1992 | 904.0 | 734.5 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -11.77 | 83.90 | -10.49 | 117.31 | 0.2014 | 775.0 | 579.7 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -13.96 | 83.61 | -10.77 | 125.66 | 0.2242 | 811.0 | 607.7 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.79 | 82.24 | -12.14 | 114.31 | 0.2269 | 950.0 | 755.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.85 | 81.94 | -12.44 | 109.95 | 0.2261 | 743.0 | 627.8 | |
| 0.00 | 2.02 | 0.00 | 1.04 | -15.28 | 80.78 | -13.60 | 124.19 | 0.2755 | -934.0 | -764.2 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -14.90 | 78.88 | -15.50 | 119.88 | 0.2991 | -864.0 | -696.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
