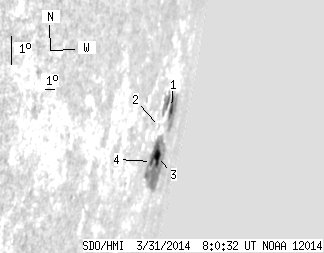

SDO HMI 2014-03-31 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.18 | 97.12 | 50.06 | 320.77 | -13.00 | 175.21 | 82.47 | 257.81 | 0.9890 | 16.7 | 50.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.76 | 32.46 | 23.69 | 112.09 | -11.94 | 175.73 | 82.99 | 258.83 | 0.9905 | -222.5 | -6.8 | |
| 0.00 | 0.79 | 0.00 | 2.29 | -12.70 | 174.17 | 81.43 | 258.19 | 0.9863 | 431.0 | 409.1 | |
| 6.84 | 63.87 | 21.79 | 206.39 | -13.53 | 175.10 | 82.36 | 257.28 | 0.9886 | 162.0 | 73.8 | |
| 1.58 | -3.00 | 4.58 | -3.00 | -13.78 | 174.19 | 81.45 | 257.09 | 0.9861 | 471.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
