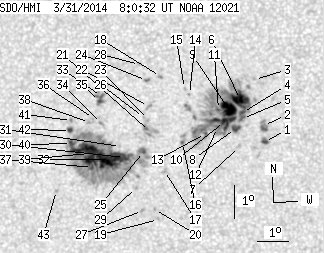

SDO HMI 2014-03-31 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.51 | 554.84 | 68.43 | 293.29 | -13.33 | 73.36 | -19.38 | 111.06 | 0.3472 | -157.4 | -98.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 3.86 | 0.96 | 2.00 | -13.65 | 76.79 | -15.95 | 115.50 | 0.2972 | 939.3 | 843.0 | |
| 0.00 | 7.55 | 0.00 | 3.91 | -13.17 | 76.79 | -15.95 | 113.98 | 0.2942 | 1142.0 | 939.2 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -11.78 | 76.59 | -16.15 | 109.23 | 0.2897 | 995.0 | 769.6 | |
| 1.93 | 220.57 | 1.00 | 114.93 | -12.76 | 76.15 | -16.60 | 111.94 | 0.3017 | 1151.6 | 349.7 | |
| 1.23 | -4.00 | 0.64 | -4.00 | -12.94 | 76.13 | -16.61 | 112.49 | 0.3029 | 949.1 | 999999 | |
| 17.90 | -4.00 | 9.29 | -4.00 | -12.36 | 76.11 | -16.63 | 110.66 | 0.3002 | 1278.9 | 999999 | |
| 0.00 | 1.84 | 0.00 | 0.96 | -13.78 | 75.98 | -16.77 | 114.89 | 0.3102 | 332.0 | 242.6 | |
| 3.60 | -4.00 | 1.87 | -4.00 | -13.23 | 75.89 | -16.85 | 113.13 | 0.3083 | 893.5 | 999999 | |
| 16.06 | -4.00 | 8.36 | -4.00 | -12.62 | 75.71 | -17.04 | 111.06 | 0.3077 | 1307.6 | 999999 | |
| 12.98 | -4.00 | 6.77 | -4.00 | -13.01 | 75.55 | -17.19 | 112.09 | 0.3122 | 920.5 | 999999 | |
| 0.88 | -4.00 | 0.46 | -4.00 | -12.64 | 75.38 | -17.36 | 110.81 | 0.3128 | 627.5 | 999999 | |
| 0.53 | -4.00 | 0.27 | -4.00 | -13.18 | 75.31 | -17.43 | 112.37 | 0.3168 | 668.3 | 999999 | |
| 0.79 | -4.00 | 0.41 | -4.00 | -13.35 | 74.91 | -17.83 | 112.46 | 0.3238 | 765.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.16 | 74.48 | -18.26 | 108.55 | 0.3245 | 482.0 | 402.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -11.97 | 74.34 | -18.41 | 107.88 | 0.3260 | 616.0 | 409.8 | |
| 0.53 | 4.39 | 0.28 | 2.31 | -13.59 | 74.14 | -18.60 | 112.42 | 0.3368 | -1054.2 | -837.8 | |
| 0.00 | 2.90 | 0.00 | 1.53 | -14.41 | 73.49 | -19.26 | 114.04 | 0.3513 | 719.0 | 478.7 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -11.58 | 73.59 | -19.15 | 106.19 | 0.3362 | -952.0 | -724.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.89 | 73.14 | -19.60 | 117.52 | 0.3653 | -886.0 | -741.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -15.58 | 73.04 | -19.70 | 116.64 | 0.3648 | -970.0 | -830.1 | |
| 0.00 | 10.35 | 0.00 | 5.47 | -13.22 | 73.10 | -19.64 | 110.46 | 0.3508 | -870.0 | -721.3 | |
| 0.00 | 2.72 | 0.00 | 1.44 | -12.47 | 73.13 | -19.61 | 108.40 | 0.3469 | -988.0 | -752.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -12.86 | 73.10 | -19.64 | 109.46 | 0.3491 | -689.0 | -658.4 | |
| 0.00 | 2.28 | 0.00 | 1.20 | -11.68 | 73.13 | -19.62 | 106.19 | 0.3438 | 1012.0 | 787.0 | |
| 1.58 | 266.63 | 0.84 | 142.66 | -13.82 | 72.85 | -19.89 | 111.86 | 0.3575 | -1157.8 | -417.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.79 | 72.94 | -19.80 | 109.16 | 0.3512 | -847.0 | -664.5 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -15.60 | 72.65 | -20.10 | 116.28 | 0.3707 | -909.0 | -766.8 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -11.19 | 72.93 | -19.81 | 104.68 | 0.3451 | 742.0 | 488.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.89 | 72.52 | -20.22 | 114.37 | 0.3683 | -864.0 | -697.1 | |
| 2.72 | -25.00 | 1.45 | -25.00 | -13.97 | 72.21 | -20.53 | 111.74 | 0.3680 | -1261.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.63 | 72.11 | -20.63 | 110.78 | 0.3678 | -347.0 | -315.4 | |
| 30.18 | -25.00 | 16.12 | -25.00 | -14.01 | 71.71 | -21.03 | 111.44 | 0.3757 | -1302.7 | 999999 | |
| 0.97 | 9.91 | 0.51 | 5.28 | -12.11 | 71.62 | -21.12 | 106.41 | 0.3689 | -1170.5 | -821.9 | |
| 0.00 | 2.28 | 0.00 | 1.22 | -12.92 | 71.55 | -21.19 | 108.50 | 0.3731 | -983.0 | -773.5 | |
| 1.14 | -33.00 | 0.61 | -33.00 | -12.25 | 71.54 | -21.20 | 106.76 | 0.3706 | -1156.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -12.76 | 71.30 | -21.44 | 107.92 | 0.3763 | 201.0 | 234.7 | |
| 1.49 | -25.00 | 0.80 | -25.00 | -14.23 | 71.13 | -21.61 | 111.53 | 0.3855 | -824.8 | 999999 | |
| 0.00 | 2.28 | 0.00 | 1.22 | -12.87 | 71.16 | -21.58 | 108.12 | 0.3789 | -745.0 | -424.5 | |
| 29.22 | -25.00 | 15.67 | -25.00 | -13.80 | 71.04 | -21.70 | 110.40 | 0.3848 | -1079.4 | 999999 | |
| 2.19 | -25.00 | 1.18 | -25.00 | -13.48 | 70.50 | -22.24 | 109.22 | 0.3914 | -804.3 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -12.78 | 70.57 | -22.17 | 107.54 | 0.3876 | -798.0 | -697.8 | |
| 1.75 | -25.00 | 0.94 | -25.00 | -13.08 | 70.51 | -22.23 | 108.25 | 0.3897 | -950.2 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -14.87 | 69.85 | -22.89 | 112.13 | 0.4075 | -770.0 | -654.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
