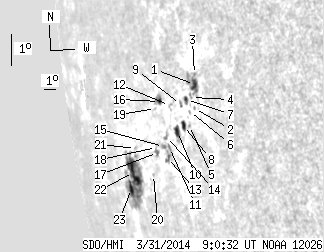

SDO HMI 2014-03-31 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.30 | 133.35 | 67.67 | 239.35 | -11.32 | 17.32 | -74.87 | 99.93 | 0.9610 | -61.0 | -118.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.12 | 15.35 | 5.58 | 20.91 | -9.83 | 22.95 | -69.24 | 98.00 | 0.9320 | 560.7 | 103.8 | |
| 0.00 | 0.97 | 0.00 | 1.32 | -10.52 | 22.61 | -69.58 | 98.77 | 0.9339 | 318.0 | 306.0 | |
| 0.00 | 1.14 | 0.00 | 1.54 | -9.54 | 23.08 | -69.11 | 97.68 | 0.9313 | 474.0 | 430.1 | |
| 0.00 | 1.05 | 0.00 | 1.45 | -10.18 | 22.52 | -69.68 | 98.40 | 0.9346 | 418.0 | 322.8 | |
| 0.00 | 1.05 | 0.00 | 1.48 | -10.97 | 21.93 | -70.27 | 99.28 | 0.9379 | 221.0 | 177.0 | |
| 0.00 | 1.05 | 0.00 | 1.47 | -10.56 | 22.14 | -70.05 | 98.84 | 0.9367 | 296.0 | 232.5 | |
| 1.58 | 2.72 | 2.22 | 3.83 | -10.19 | 22.06 | -70.13 | 98.44 | 0.9373 | 285.2 | 235.0 | |
| 2.90 | 3.68 | 4.18 | 5.32 | -10.91 | 21.40 | -70.80 | 99.25 | 0.9410 | 266.8 | 219.7 | |
| 0.00 | 1.93 | 0.00 | 2.78 | -10.28 | 21.46 | -70.73 | 98.57 | 0.9408 | 148.0 | 55.2 | |
| 4.04 | 7.02 | 6.02 | 10.47 | -11.02 | 20.76 | -71.44 | 99.41 | 0.9446 | 391.9 | 238.1 | |
| 0.00 | 2.28 | 0.00 | 3.57 | -11.40 | 19.72 | -72.47 | 99.87 | 0.9502 | 245.0 | 193.3 | |
| 0.00 | 0.88 | 0.00 | 1.33 | -10.20 | 20.45 | -71.75 | 98.55 | 0.9466 | -20.0 | 17.0 | |
| 0.00 | 4.47 | 0.00 | 7.14 | -11.67 | 19.34 | -72.86 | 100.17 | 0.9521 | 149.0 | 178.8 | |
| 0.00 | 2.63 | 0.00 | 4.15 | -11.06 | 19.64 | -72.56 | 99.51 | 0.9507 | -510.0 | -343.5 | |
| 0.00 | 2.02 | 0.00 | 3.26 | -11.31 | 19.15 | -73.04 | 99.80 | 0.9532 | -470.0 | -452.9 | |
| 1.58 | 7.02 | 2.51 | 11.22 | -9.98 | 19.56 | -72.63 | 98.38 | 0.9515 | -88.1 | -339.1 | |
| 0.97 | 3.42 | 1.62 | 5.76 | -11.41 | 18.43 | -73.77 | 99.96 | 0.9568 | -560.0 | -419.2 | |
| 0.00 | 2.11 | 0.00 | 3.54 | -11.26 | 18.43 | -73.77 | 99.80 | 0.9569 | -481.0 | -445.5 | |
| 0.00 | 0.79 | 0.00 | 1.29 | -10.14 | 19.05 | -73.15 | 98.58 | 0.9541 | -217.0 | -227.6 | |
| 0.00 | 0.97 | 0.00 | 1.71 | -11.99 | 17.54 | -74.66 | 100.61 | 0.9610 | 254.0 | 228.0 | |
| 0.00 | 0.97 | 0.00 | 1.87 | -11.03 | 16.08 | -76.12 | 99.71 | 0.9678 | -454.0 | -401.8 | |
| 17.11 | 69.83 | 34.85 | 143.94 | -11.68 | 15.26 | -76.94 | 100.44 | 0.9711 | -373.2 | -183.1 | |
| 5.00 | -22.00 | 10.69 | -22.00 | -12.09 | 14.57 | -77.62 | 100.91 | 0.9737 | 138.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
