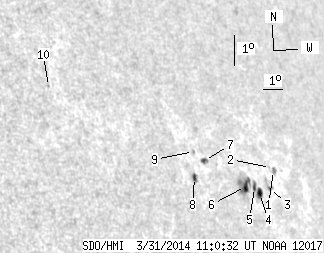

SDO HMI 2014-03-31 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.29 | 44.64 | 13.75 | 42.90 | 9.93 | 147.93 | 56.83 | 285.81 | 0.8586 | -343.9 | -348.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-31 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 3.07 | 0.63 | 3.13 | 10.45 | 149.84 | 58.74 | 285.85 | 0.8758 | -445.1 | -302.8 | |
| 0.00 | 0.79 | 0.00 | 0.80 | 10.53 | 149.68 | 58.58 | 285.98 | 0.8747 | -348.0 | -347.9 | |
| 0.79 | 4.65 | 0.79 | 4.66 | 9.85 | 149.42 | 58.32 | 285.29 | 0.8712 | -495.7 | -385.4 | |
| 4.12 | 9.82 | 4.05 | 9.63 | 9.63 | 148.78 | 57.68 | 285.21 | 0.8655 | -457.4 | -368.1 | |
| 1.67 | -4.00 | 1.63 | -4.00 | 9.80 | 148.54 | 57.44 | 285.46 | 0.8638 | -520.6 | 999999 | |
| 4.03 | 17.72 | 3.88 | 17.02 | 9.78 | 148.03 | 56.93 | 285.58 | 0.8594 | -898.0 | -547.4 | |
| 1.40 | 3.33 | 1.28 | 3.05 | 10.38 | 145.95 | 54.85 | 286.87 | 0.8425 | 526.6 | 354.0 | |
| 1.67 | 3.07 | 1.49 | 2.75 | 9.79 | 145.27 | 54.17 | 286.39 | 0.8349 | 431.3 | 301.6 | |
| 0.00 | 1.14 | 0.00 | 1.03 | 10.61 | 145.43 | 54.33 | 287.29 | 0.8384 | -443.0 | -419.5 | |
| 0.00 | 1.05 | 0.00 | 0.83 | 12.03 | 138.71 | 47.61 | 291.37 | 0.7779 | 571.0 | 544.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
